FX::FXFileSelector Class Reference

File selection widget. More...

#include <FXFileSelector.h>

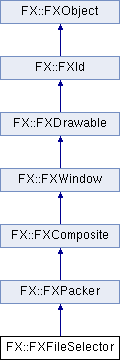

Inheritance diagram for FX::FXFileSelector:
FX::FXPacker FX::FXComposite FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject

Public Types

enum  {
  ID_FILEFILTER =FXPacker::ID_LAST, ID_ACCEPT, ID_FILELIST, ID_DIRECTORY_UP,
  ID_DIRTREE, ID_MINI_SIZE, ID_NORMAL_SIZE, ID_MEDIUM_SIZE,
  ID_GIANT_SIZE, ID_HOME, ID_WORK, ID_BOOKMARK,
  ID_UNBOOKMARK, ID_BOOKMENU, ID_VISIT, ID_NEW,
  ID_RENAME, ID_COPY, ID_MOVE, ID_LINK,
  ID_REMOVE, ID_LAST
}

- Public Types inherited from FX::FXWindow
enum  WindowClass {
  ClassNormal, ClassGraphic, ClassSpecial, ClassRoot,
  ClassShell, ClassPopup, ClassToolTip, ClassMain,
  ClassDialog, ClassToolBar, ClassSplash, ClassNotify,
  ClassPanel, ClassDesktop
}
 Window classes. More...

enum  {
  ID_NONE, ID_HIDE, ID_SHOW, ID_TOGGLESHOWN,
  ID_LOWER, ID_RAISE, ID_DELETE, ID_DISABLE,
  ID_ENABLE, ID_TOGGLEENABLED, ID_UNCHECK, ID_CHECK,
  ID_UNKNOWN, ID_UPDATE, ID_TIPTIMER, ID_SETVALUE,
  ID_SETINTVALUE, ID_SETLONGVALUE, ID_SETREALVALUE, ID_SETSTRINGVALUE,
  ID_SETICONVALUE, ID_SETINTRANGE, ID_SETREALRANGE, ID_GETINTVALUE,
  ID_GETLONGVALUE, ID_GETREALVALUE, ID_GETSTRINGVALUE, ID_GETICONVALUE,
  ID_GETINTRANGE, ID_GETREALRANGE, ID_SETHELPSTRING, ID_GETHELPSTRING,
  ID_SETTIPSTRING, ID_GETTIPSTRING, ID_QUERY_MENU, ID_HOTKEY,
  ID_ACCEL, ID_UNPOST, ID_POST, ID_MDI_TILEHORIZONTAL,
  ID_MDI_TILEVERTICAL, ID_MDI_CASCADE, ID_MDI_MAXIMIZE, ID_MDI_MINIMIZE,
  ID_MDI_RESTORE, ID_MDI_CLOSE, ID_MDI_WINDOW, ID_MDI_MENUWINDOW,
  ID_MDI_MENUMINIMIZE, ID_MDI_MENURESTORE, ID_MDI_MENUCLOSE, ID_MDI_NEXT,
  ID_MDI_PREV, ID_LAST
}


Public Member Functions

long onCmdAccept (FXObject *, FXSelector, void *)

long onCmdFilter (FXObject *, FXSelector, void *)

long onCmdItemDblClicked (FXObject *, FXSelector, void *)

long onCmdItemSelected (FXObject *, FXSelector, void *)

long onCmdItemDeselected (FXObject *, FXSelector, void *)

long onCmdDirectoryUp (FXObject *, FXSelector, void *)

long onUpdDirectoryUp (FXObject *, FXSelector, void *)

long onUpdDirTree (FXObject *, FXSelector, void *)

long onCmdDirTree (FXObject *, FXSelector, void *)

long onCmdHome (FXObject *, FXSelector, void *)

long onCmdWork (FXObject *, FXSelector, void *)

long onCmdBookmark (FXObject *, FXSelector, void *)

long onCmdUnBookmark (FXObject *, FXSelector, void *)

long onCmdVisit (FXObject *, FXSelector, void *)

long onCmdNew (FXObject *, FXSelector, void *)

long onUpdNew (FXObject *, FXSelector, void *)

long onCmdRename (FXObject *, FXSelector, void *)

long onCmdCopy (FXObject *, FXSelector, void *)

long onCmdMove (FXObject *, FXSelector, void *)

long onCmdLink (FXObject *, FXSelector, void *)

long onCmdRemove (FXObject *, FXSelector, void *)

long onUpdSelected (FXObject *, FXSelector, void *)

long onPopupMenu (FXObject *, FXSelector, void *)

long onCmdImageSize (FXObject *, FXSelector, void *)

long onUpdImageSize (FXObject *, FXSelector, void *)

long onUpdNavigable (FXObject *, FXSelector, void *)

 FXFileSelector (FXComposite *p, FXObject *tgt=nullptr, FXSelector sel=0, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
 Constructor.

virtual void create ()
 Create server-side resources.

FXButtonacceptButton () const
 Return a pointer to the "Accept" button.

FXButtoncancelButton () const
 Return a pointer to the "Cancel" button.

void setFilename (const FXString &path)
 Change file name.

FXString getFilename () const
 Return file name, if any.

FXStringgetFilenames () const
 Return array of strings containing the selected file names, terminated by an empty string. More...

void setDirectory (const FXString &path)
 Change directory.

FXString getDirectory () const
 Return directory.

void setSelectMode (FXuint mode)
 Change file selection mode; the default is SELECTFILE_ANY.

FXuint getSelectMode () const
 Return file selection mode.

void setPattern (const FXString &ptrn)
 Change file pattern.

FXString getPattern () const
 Return file pattern.

void setMatchMode (FXuint mode)
 Change wildcard matching mode (see FXPath)

FXuint getMatchMode () const
 Return wildcard matching mode.

void setPatternList (const FXString &patterns)
 Change the list of file patterns shown in the file dialog. More...

FXString getPatternList () const
 Return list of patterns.

void setCurrentPattern (FXint patno)
 After setting the list of patterns, this call will initially select pattern n as the active one.

FXint getCurrentPattern () const
 Return current pattern number.

void setPatternText (FXint patno, const FXString &text)
 Change pattern text for pattern number.

FXString getPatternText (FXint patno) const
 Get pattern text for given pattern number.

FXint getNumPatterns () const
 Return number of patterns.

void allowPatternEntry (FXbool flag)
 Allow pattern entry.

FXbool allowPatternEntry () const
 Return true if pattern entry is allowed.

void setItemSpace (FXint s)
 Set the inter-item spacing (in pixels)

FXint getItemSpace () const
 Return the inter-item spacing (in pixels)

void setFileBoxStyle (FXuint style)
 Change file list style.

FXuint getFileBoxStyle () const
 Return file list style.

FXbool showHiddenFiles () const
 Return true if showing hidden files.

void showHiddenFiles (FXbool flag)
 Show or hide hidden files.

FXbool showImages () const
 Return true if image preview on.

void showImages (FXbool flag)
 Show or hide preview images.

FXint getImageSize () const
 Return images preview size.

void setImageSize (FXint size)
 Change images preview size.

void showReadOnly (FXbool flag)
 Show readonly button.

FXbool shownReadOnly () const
 Return true if readonly is shown.

void setReadOnly (FXbool flag)
 Set initial state of readonly button.

FXbool getReadOnly () const
 Get readonly state.

void allowNavigation (FXbool flag)
 Allow or disallow navigation.

FXbool allowNavigation () const
 Is navigation allowed?

void setDraggableFiles (FXbool flag)
 Set draggable files.

FXbool getDraggableFiles () const
 Are files draggable?

void setTimeFormat (const FXString &fmt)
 Set file time format.

FXString getTimeFormat () const
 Return file time format.

void setAssociations (FXFileAssociations *assoc, FXbool owned=false)
 Change file associations; delete old ones if owned.

FXFileAssociationsgetAssociations () const
 Return file associations.

void setIconSource (FXIconSource *src)
 Change icon loader.

FXIconSourcegetIconSource () const
 Return icon loader.

virtual void save (FXStream &store) const
 Save object to a stream.

virtual void load (FXStream &store)
 Load object from a stream.

virtual ~FXFileSelector ()
 Destructor.

- Public Member Functions inherited from FX::FXPacker
long onPaint (FXObject *, FXSelector, void *)

long onFocusUp (FXObject *, FXSelector, void *)

long onFocusDown (FXObject *, FXSelector, void *)

long onFocusLeft (FXObject *, FXSelector, void *)

long onFocusRight (FXObject *, FXSelector, void *)

 FXPacker (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_SPACING, FXint pr=DEFAULT_SPACING, FXint pt=DEFAULT_SPACING, FXint pb=DEFAULT_SPACING, FXint hs=DEFAULT_SPACING, FXint vs=DEFAULT_SPACING)
 Construct packer layout manager.

virtual FXint getDefaultWidth ()
 Return default width.

virtual FXint getDefaultHeight ()
 Return default height.

virtual void layout ()
 Perform layout.

void setFrameStyle (FXuint style)
 Change frame style.

FXuint getFrameStyle () const
 Get current frame style.

void setPackingHints (FXuint ph)
 Change packing hints.

FXuint getPackingHints () const
 Return packing hints.

FXint getBorderWidth () const
 Get border width.

void setPadTop (FXint pt)
 Change top padding.

FXint getPadTop () const
 Get top interior padding.

void setPadBottom (FXint pb)
 Change bottom padding.

FXint getPadBottom () const
 Get bottom interior padding.

void setPadLeft (FXint pl)
 Change left padding.

FXint getPadLeft () const
 Get left interior padding.

void setPadRight (FXint pr)
 Change right padding.

FXint getPadRight () const
 Get right interior padding.

void setHiliteColor (FXColor clr)
 Change highlight color.

FXColor getHiliteColor () const
 Get highlight color.

void setShadowColor (FXColor clr)
 Change shadow color.

FXColor getShadowColor () const
 Get shadow color.

void setBorderColor (FXColor clr)
 Change border color.

FXColor getBorderColor () const
 Get border color.

void setBaseColor (FXColor clr)
 Change base gui color.

FXColor getBaseColor () const
 Get base gui color.

void setHSpacing (FXint hs)
 Change horizontal inter-child spacing.

FXint getHSpacing () const
 Return current horizontal inter-child spacing.

void setVSpacing (FXint vs)
 Change vertical inter-child spacing.

FXint getVSpacing () const
 Return current vertical inter-child spacing.

- Public Member Functions inherited from FX::FXComposite
long onKeyPress (FXObject *, FXSelector, void *)

long onKeyRelease (FXObject *, FXSelector, void *)

long onFocusNext (FXObject *, FXSelector, void *)

long onFocusPrev (FXObject *, FXSelector, void *)

long onCmdUpdate (FXObject *, FXSelector, void *)

 FXComposite (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
 Constructor.

virtual void detach ()
 Detach server-side resources.

virtual void destroy ()
 Destroy server-side resources.

FXint maxChildWidth () const
 Return the width of the widest child window.

FXint maxChildHeight () const
 Return the height of the tallest child window.

virtual FXbool isComposite () const
 Overrides this virtual function to return true.

virtual ~FXComposite ()
 Destructor.

- Public Member Functions inherited from FX::FXWindow
long onPaint (FXObject *, FXSelector, void *)

long onMap (FXObject *, FXSelector, void *)

long onUnmap (FXObject *, FXSelector, void *)

long onConfigure (FXObject *, FXSelector, void *)

long onUpdate (FXObject *, FXSelector, void *)

long onMotion (FXObject *, FXSelector, void *)

long onMouseWheel (FXObject *, FXSelector, void *)

long onEnter (FXObject *, FXSelector, void *)

long onLeave (FXObject *, FXSelector, void *)

long onLeftBtnPress (FXObject *, FXSelector, void *)

long onLeftBtnRelease (FXObject *, FXSelector, void *)

long onMiddleBtnPress (FXObject *, FXSelector, void *)

long onMiddleBtnRelease (FXObject *, FXSelector, void *)

long onRightBtnPress (FXObject *, FXSelector, void *)

long onRightBtnRelease (FXObject *, FXSelector, void *)

long onSpaceBallMotion (FXObject *, FXSelector, void *)

long onSpaceBallButtonPress (FXObject *, FXSelector, void *)

long onSpaceBallButtonRelease (FXObject *, FXSelector, void *)

long onBeginDrag (FXObject *, FXSelector, void *)

long onEndDrag (FXObject *, FXSelector, void *)

long onDragged (FXObject *, FXSelector, void *)

long onKeyPress (FXObject *, FXSelector, void *)

long onKeyRelease (FXObject *, FXSelector, void *)

long onUngrabbed (FXObject *, FXSelector, void *)

long onDestroy (FXObject *, FXSelector, void *)

long onFocusSelf (FXObject *, FXSelector, void *)

long onFocusIn (FXObject *, FXSelector, void *)

long onFocusOut (FXObject *, FXSelector, void *)

long onSelectionLost (FXObject *, FXSelector, void *)

long onSelectionGained (FXObject *, FXSelector, void *)

long onSelectionRequest (FXObject *, FXSelector, void *)

long onClipboardLost (FXObject *, FXSelector, void *)

long onClipboardGained (FXObject *, FXSelector, void *)

long onClipboardRequest (FXObject *, FXSelector, void *)

long onDNDEnter (FXObject *, FXSelector, void *)

long onDNDLeave (FXObject *, FXSelector, void *)

long onDNDMotion (FXObject *, FXSelector, void *)

long onDNDDrop (FXObject *, FXSelector, void *)

long onDNDRequest (FXObject *, FXSelector, void *)

long onQueryHelp (FXObject *, FXSelector, void *)

long onQueryTip (FXObject *, FXSelector, void *)

long onCmdShow (FXObject *, FXSelector, void *)

long onCmdHide (FXObject *, FXSelector, void *)

long onUpdToggleShown (FXObject *, FXSelector, void *)

long onCmdToggleShown (FXObject *, FXSelector, void *)

long onCmdRaise (FXObject *, FXSelector, void *)

long onCmdLower (FXObject *, FXSelector, void *)

long onCmdEnable (FXObject *, FXSelector, void *)

long onCmdDisable (FXObject *, FXSelector, void *)

long onUpdToggleEnabled (FXObject *, FXSelector, void *)

long onCmdToggleEnabled (FXObject *, FXSelector, void *)

long onCmdUpdate (FXObject *, FXSelector, void *)

long onUpdYes (FXObject *, FXSelector, void *)

long onCmdDelete (FXObject *, FXSelector, void *)

 FXWindow (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
 Constructor.

FXWindowgetParent () const
 Return a pointer to the parent window.

FXWindowgetOwner () const
 Return a pointer to the owner window.

FXWindowgetNext () const
 Return a pointer to the next (sibling) window, if any.

FXWindowgetPrev () const
 Return a pointer to the previous (sibling) window , if any.

FXWindowgetFirst () const
 Return a pointer to this window's first child window , if any.

FXWindowgetLast () const
 Return a pointer to this window's last child window, if any.

FXWindowgetFocus () const
 Return a pointer to the currently focused child window.

FXWindowgetShell () const
 Return a pointer to the shell window.

FXWindowgetRoot () const
 Return a pointer to the root window.

virtual WindowClass getWindowClass () const
 Get window class.

void setKey (FXuint k)
 Change window key.

FXuint getKey () const
 Return window key.

FXWindowgetChildWithKey (FXuint k) const
 Return child window with given window key.

void setTarget (FXObject *t)
 Set the message target object for this window.

FXObjectgetTarget () const
 Get the message target object for this window, if any.

void setSelector (FXSelector sel)
 Set the message identifier for this window.

FXSelector getSelector () const
 Get the message identifier for this window.

FXint getX () const
 Get this window's x-coordinate, in the parent's coordinate system.

FXint getY () const
 Get this window's y-coordinate, in the parent's coordinate system.

virtual FXint getWidthForHeight (FXint givenheight)
 Return width for given height.

virtual FXint getHeightForWidth (FXint givenwidth)
 Return height for given width.

void setX (FXint x)
 Set this window's x-coordinate, in the parent's coordinate system.

void setY (FXint y)
 Set this window's y-coordinate, in the parent's coordinate system.

void setWidth (FXint w)
 Set the window width; and flag the widget as being in need of layout by its parent. More...

void setHeight (FXint h)
 Set the window height; and flag the widget as being in need of layout by its parent. More...

void setLayoutHints (FXuint lout)
 Set layout hints for this window.

FXuint getLayoutHints () const
 Get layout hints for this window.

FXAccelTablegetAccelTable () const
 Return a pointer to the accelerator table.

void setAccelTable (FXAccelTable *acceltable)
 Set the accelerator table.

void addHotKey (FXHotKey code)
 Add a hot key.

void remHotKey (FXHotKey code)
 Remove a hot key.

void setHelpTag (const FXString &text)
 Change help tag for this widget.

const FXStringgetHelpTag () const
 Get the help tag for this widget.

FXbool isShell () const
 Return true if window is a shell window.

FXbool isOwnerOf (const FXWindow *window) const
 Return true if specified window is owned by this window.

FXbool isChildOf (const FXWindow *window) const
 Return true if specified window is ancestor of this window.

FXbool containsChild (const FXWindow *child) const
 Return true if this window contains child in its subtree.

FXWindowgetChildAt (FXint x, FXint y) const
 Return the child window at specified coordinates.

FXint numChildren () const
 Return the number of child windows for this window.

FXint indexOfChild (const FXWindow *window) const
 Return the index (starting from zero) of the specified child window, or -1 if the window is not a child or NULL.

FXWindowchildAtIndex (FXint index) const
 Return the child window at specified index, or NULL if the index is negative or out of range.

FXComposeContextgetComposeContext () const
 Return compose context.

void createComposeContext ()
 Create compose context.

void destroyComposeContext ()
 Destroy compose context.

FXbool cursorShown () const
 Is cursor shown.

void showCursor (FXbool flag=true)
 Show or hide the cursor.

void setDefaultCursor (FXCursor *cur)
 Set the default cursor for this window.

FXCursorgetDefaultCursor () const
 Return the default cursor for this window.

void setDragCursor (FXCursor *cur)
 Set the drag cursor for this window.

FXCursorgetDragCursor () const
 Return the drag cursor for this window.

FXbool getCursorPosition (FXint &x, FXint &y, FXuint &buttons) const
 Return the cursor position and mouse button-state.

FXbool setCursorPosition (FXint x, FXint y)
 Warp the cursor to the new position.

FXbool isActive () const
 Return true if the window is active.

virtual FXbool canFocus () const
 Return true if this window is a control capable of receiving the focus.

FXbool hasFocus () const
 Return true if this window has the focus.

FXbool inFocusChain () const
 Return true if this window is in focus chain.

virtual void setFocus ()
 Move the focus to this window.

virtual void killFocus ()
 Remove the focus from this window.

FXbool isDefault () const
 Return true if this is the default window.

virtual void setDefault (FXuchar flag=true)
 This changes the default window which responds to the Return key in a dialog. More...

FXWindowfindDefault () const
 Find default window among this window's children.

FXbool isInitial () const
 Return true if this is the initial default window.

void setInitial (FXbool flag=true)
 Make this window the initial default window.

FXWindowfindInitial () const
 Find inital default window among this window's children.

FXbool isEnabled () const
 Return true if this window is able to receive mouse and keyboard events.

virtual void enable ()
 Enable the window to receive mouse and keyboard events.

virtual void disable ()
 Disable the window from receiving mouse and keyboard events.

virtual void attach (FXID w)
 Attach foreign window handle to this window.

virtual void setShape (const FXRegion &region)
 Set window shape by means of region.

virtual void setShape (FXBitmap *bitmap)
 Set window shape by means of bitmap.

virtual void setShape (FXIcon *icon)
 Set window shape by means of icon.

virtual void clearShape ()
 Clear window shape.

virtual void raise ()
 Raise this window to the top of the stacking order.

virtual void lower ()
 Lower this window to the bottom of the stacking order.

virtual void move (FXint x, FXint y)
 Move the window immediately, in the parent's coordinate system. More...

virtual void resize (FXint w, FXint h)
 Resize the window to the specified width and height immediately, updating the server representation as well, if the window was realized. More...

virtual void position (FXint x, FXint y, FXint w, FXint h)
 Move and resize the window immediately, in the parent's coordinate system. More...

virtual void recalc ()
 Mark this window's layout as dirty for later layout.

void forceRefresh ()
 Generate a SEL_UPDATE message for the window and its children.

virtual void reparent (FXWindow *father, FXWindow *other=nullptr)
 Reparent this window under new father before other.

void scroll (FXint x, FXint y, FXint w, FXint h, FXint dx, FXint dy) const
 Scroll rectangle x,y,w,h by a shift of dx,dy.

void update (FXint x, FXint y, FXint w, FXint h) const
 Mark the specified rectangle to be repainted later.

void update () const
 Mark the entire window to be repainted later.

void repaint (FXint x, FXint y, FXint w, FXint h) const
 Process any outstanding repaint messages immediately, for the given rectangle.

void repaint () const
 Process any outstanding repaint messages immediately.

FXbool grabbed () const
 Return true if the window has been grabbed.

void grab ()
 Grab the mouse to this window; future mouse events will be reported to this window even while the cursor goes outside of this window.

void ungrab ()
 Release the mouse grab.

FXbool grabbedKeyboard () const
 Return true if active grab is in effect.

void grabKeyboard ()
 Grab keyboard device.

void ungrabKeyboard ()
 Ungrab keyboard device.

FXbool shown () const
 Return true if the window is shown.

virtual void show ()
 Show this window.

virtual void hide ()
 Hide this window.

FXbool underCursor () const
 Return true if the window is under the cursor.

FXbool hasSelection () const
 Return true if this window owns the primary selection.

FXbool acquireSelection (const FXDragType *types, FXuint numtypes)
 Try to acquire the primary selection, given a list of drag types.

FXbool releaseSelection ()
 Release the primary selection.

FXbool hasClipboard () const
 Return true if this window owns the clipboard.

FXbool acquireClipboard (const FXDragType *types, FXuint numtypes)
 Try to acquire the clipboard, given a list of drag types.

FXbool releaseClipboard ()
 Release the clipboard.

FXbool isDropEnabled () const
 Return true if this window is able to receive drops.

virtual void dropEnable ()
 Enable this window to receive drops.

virtual void dropDisable ()
 Disable this window from receiving drops.

FXbool isDragging () const
 Return true if a drag operaion has been initiated from this window.

FXbool beginDrag (const FXDragType *types, FXuint numtypes)
 Initiate a drag operation with a list of previously registered drag types.

FXbool handleDrag (FXint x, FXint y, FXDragAction action=DRAG_COPY)
 When dragging, inform the drop-target of the new position and the drag action.

FXDragAction endDrag (FXbool drop=true)
 Terminate the drag operation with or without actually dropping the data Returns the action performed by the target.

FXbool isDropTarget () const
 Return true if this window is the target of a drop.

void setDragRectangle (FXint x, FXint y, FXint w, FXint h, FXbool wantupdates=true) const
 When being dragged over, indicate that no further SEL_DND_MOTION messages are required while the cursor is inside the given rectangle.

void clearDragRectangle () const
 When being dragged over, indicate we want to receive SEL_DND_MOTION messages every time the cursor moves.

void acceptDrop (FXDragAction action=DRAG_ACCEPT) const
 When being dragged over, indicate acceptance or rejection of the dragged data.

FXDragAction didAccept () const
 The target accepted our drop.

void dropFinished (FXDragAction action=DRAG_REJECT) const
 Sent by the drop target in response to SEL_DND_DROP. More...

FXbool inquireDNDTypes (FXDNDOrigin origin, FXDragType *&types, FXuint &numtypes) const
 When being dragged over, inquire the drag types which are being offered.

FXbool offeredDNDType (FXDNDOrigin origin, FXDragType type) const
 When being dragged over, return true if we are offered the given drag type.

FXDragAction inquireDNDAction () const
 When being dragged over, return the drag action.

FXbool setDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *data, FXuint size) const
 Set DND data; the array must be allocated with allocElms() and ownership is transferred to the system.

FXbool setDNDData (FXDNDOrigin origin, FXDragType type, const FXString &string) const
 Set DND data from string value.

FXbool getDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *&data, FXuint &size) const
 Get DND data; the caller becomes the owner of the array and must free it with freeElms().

FXbool getDNDData (FXDNDOrigin origin, FXDragType type, FXString &string) const
 Get DND data into string value.

virtual FXbool contains (FXint parentx, FXint parenty) const
 Return true if window logically contains the given point.

void translateCoordinatesFrom (FXint &tox, FXint &toy, const FXWindow *fromwindow, FXint fromx, FXint fromy) const
 Translate coordinates from fromwindow's coordinate space to this window's coordinate space.

void translateCoordinatesTo (FXint &tox, FXint &toy, const FXWindow *towindow, FXint fromx, FXint fromy) const
 Translate coordinates from this window's coordinate space to towindow's coordinate space.

virtual void setBackColor (FXColor clr)
 Set window background color.

FXColor getBackColor () const
 Get background color.

virtual FXbool doesSaveUnder () const
 Does save-unders.

virtual const FXchar * tr (const FXchar *text, const FXchar *hint=nullptr, FXint count=-1) const FX_FORMAT(2)
 Translate message for localization; using the current FXTranslator, an attempt is made to translate the given message into the current language. More...

virtual ~FXWindow ()
 Destroy window.

- Public Member Functions inherited from FX::FXDrawable
FXVisualgetVisual () const
 Get the visual.

FXint getWidth () const
 Width of drawable.

FXint getHeight () const
 Height of drawable.

void setVisual (FXVisual *vis)
 Change visual.

virtual ~FXDrawable ()
 Cleanup.

- Public Member Functions inherited from FX::FXId
FXAppgetApp () const
 Get application.

FXID id () const
 Get XID handle.

void setUserData (FXptr ptr)
 Set user data pointer.

FXptr getUserData () const
 Get user data pointer.

virtual ~FXId ()
 Destructor.

- Public Member Functions inherited from FX::FXObject
const FXchar * getClassName () const
 Get class name of some object.

FXbool isMemberOf (const FXMetaClass *metaclass) const
 Check if object is member of metaclass.

virtual long tryHandle (FXObject *sender, FXSelector sel, void *ptr)
 Try handle message safely, catching certain exceptions.

virtual long onDefault (FXObject *, FXSelector, void *)
 Called for unhandled messages.

virtual ~FXObject ()
 Virtual destructor.


Static Public Member Functions

static FXString patternFromText (const FXString &pattern)
 Given filename pattern of the form "GIF Format (*.gif)", returns the pattern only, i.e. More...

static FXString extensionFromPattern (const FXString &pattern)
 Given a pattern of the form "*.gif,*.GIF", return the first extension of the pattern, i.e. More...

- Static Public Member Functions inherited from FX::FXWindow
static FXWindowcommonAncestor (FXWindow *a, FXWindow *b)
 Return the common ancestor of window a and window b.

static FXbool before (const FXWindow *a, const FXWindow *b)
 Return true if sibling a <= sibling b in list.

static FXbool after (const FXWindow *a, const FXWindow *b)
 Return true if sibling a >= sibling b in list.


Static Protected Member Functions

static FXint countFilenames (const FXString &string)

static FXString decodeFilename (const FXString &string, FXint n=0)

static FXString encodeFilename (const FXString &string)


Protected Attributes

FXFileListfilebox

FXTextFieldfilename

FXComboBoxfilefilter

FXMenuPanebookmarkmenu

FXHorizontalFramenavbuttons

FXHorizontalFramefileboxframe

FXMatrixentryblock

FXCheckButtonreadonly

FXDirBoxdirbox

FXButtonaccept

FXButtoncancel

FXIconupdiricon

FXIconlisticon

FXIcondetailicon

FXIconiconsicon

FXIconhomeicon

FXIconworkicon

FXIconshownicon

FXIconhiddenicon

FXIconbookmarkicon

FXIconbookaddicon

FXIconbookdelicon

FXIconbookclricon

FXIconsortingicon

FXIconnewicon

FXIconrenameicon

FXIconcopyicon

FXIconmoveicon

FXIconlinkicon

FXIcondeleteicon

FXRecentFiles bookmarks

FXuint selectmode

FXbool navigable

- Protected Attributes inherited from FX::FXPacker
FXColor baseColor

FXColor hiliteColor

FXColor shadowColor

FXColor borderColor

FXint padtop

FXint padbottom

FXint padleft

FXint padright

FXint hspacing

FXint vspacing

FXint border

- Protected Attributes inherited from FX::FXWindow
FXComposeContextcomposeContext

FXCursordefaultCursor

FXCursordragCursor

FXAccelTableaccelTable

FXObjecttarget

FXSelector message

FXint xpos

FXint ypos

FXColor backColor

FXString tag

FXuint flags

FXuint options

- Protected Attributes inherited from FX::FXDrawable
FXVisualvisual

FXint width

FXint height

- Protected Attributes inherited from FX::FXId
FXID xid


Additional Inherited Members

- Static Public Attributes inherited from FX::FXWindow
static FXDragType octetType

static FXDragType deleteType

static FXDragType textType

static FXDragType colorType

static FXDragType urilistType

static FXDragType utf8Type

static FXDragType utf16Type

static FXDragType actionType

static const FXDragType stringType

static const FXDragType imageType

static const FXchar octetTypeName []

static const FXchar deleteTypeName []

static const FXchar textTypeName []

static const FXchar colorTypeName []

static const FXchar urilistTypeName []

static const FXchar utf8TypeName []

static const FXchar utf16TypeName []

static const FXchar actionTypeName []

- Protected Types inherited from FX::FXWindow
enum  {
  FLAG_SHOWN = 0x00000001, FLAG_ENABLED = 0x00000002, FLAG_UPDATE = 0x00000004, FLAG_DROPTARGET = 0x00000008,
  FLAG_FOCUSED = 0x00000010, FLAG_DIRTY = 0x00000020, FLAG_RECALC = 0x00000040, FLAG_TIP = 0x00000080,
  FLAG_HELP = 0x00000100, FLAG_DEFAULT = 0x00000200, FLAG_INITIAL = 0x00000400, FLAG_SHELL = 0x00000800,
  FLAG_ACTIVE = 0x00001000, FLAG_PRESSED = 0x00002000, FLAG_KEY = 0x00004000, FLAG_CARET = 0x00008000,
  FLAG_CHANGED = 0x00010000, FLAG_LASSO = 0x00020000, FLAG_TRYDRAG = 0x00040000, FLAG_DODRAG = 0x00080000,
  FLAG_SCROLLINSIDE = 0x00100000, FLAG_SCROLLING = 0x00200000, FLAG_OWNED = 0x00400000, FLAG_CURSOR = 0x00800000
}

- Protected Member Functions inherited from FX::FXPacker
void drawBorderRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawRaisedRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawSunkenRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawRidgeRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawGrooveRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawDoubleRaisedRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawDoubleSunkenRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawFocusRectangle (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

void drawFrame (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h)

- Protected Member Functions inherited from FX::FXComposite
 FXComposite (FXApp *a, FXVisual *vis)

 FXComposite (FXApp *a, FXWindow *own, FXuint opts, FXint x, FXint y, FXint w, FXint h)

- Protected Member Functions inherited from FX::FXWindow
virtual FXbool doesOverrideRedirect () const

void addColormapWindows ()

void remColormapWindows ()

 FXWindow (FXApp *a, FXVisual *vis)

 FXWindow (FXApp *a, FXWindow *own, FXuint opts, FXint x, FXint y, FXint w, FXint h)

- Protected Member Functions inherited from FX::FXDrawable
 FXDrawable (FXApp *a, FXint w, FXint h)

- Protected Member Functions inherited from FX::FXId
 FXId (FXApp *a)


Detailed Description

File selection widget.

Member Function Documentation

◆ extensionFromPattern()

static FXString FX::FXFileSelector::extensionFromPattern ( const FXString pattern)
static

Given a pattern of the form "*.gif,*.GIF", return the first extension of the pattern, i.e.

"gif" in this example. Returns empty string if it doesn't work out.

◆ getFilenames()

FXString* FX::FXFileSelector::getFilenames ( ) const

Return array of strings containing the selected file names, terminated by an empty string.

This string array must be freed using delete []. If no files were selected, a NULL is returned.

◆ patternFromText()

static FXString FX::FXFileSelector::patternFromText ( const FXString pattern)
static

Given filename pattern of the form "GIF Format (*.gif)", returns the pattern only, i.e.

"*.gif" in this case. If the parentheses are not found then returns the entire input pattern.

◆ setPatternList()

void FX::FXFileSelector::setPatternList ( const FXString patterns)

Change the list of file patterns shown in the file dialog.

Each pattern comprises an optional name, followed by a pattern in parentheses. The patterns are separated by newlines. For example,

"*\n*.cpp,*.cc\n*.hpp,*.hh,*.h"

and

"All Files (*)\nC++ Sources (*.cpp,*.cc)\nC++ Headers (*.hpp,*.hh,*.h)"

will set the same three patterns, but the former shows no pattern names.


The documentation for this class was generated from the following file:

Copyright © 1997-2022 Jeroen van der Zijp
