A button provides a push button, with optional icon and/or text label. More...

#include <FXButton.h>

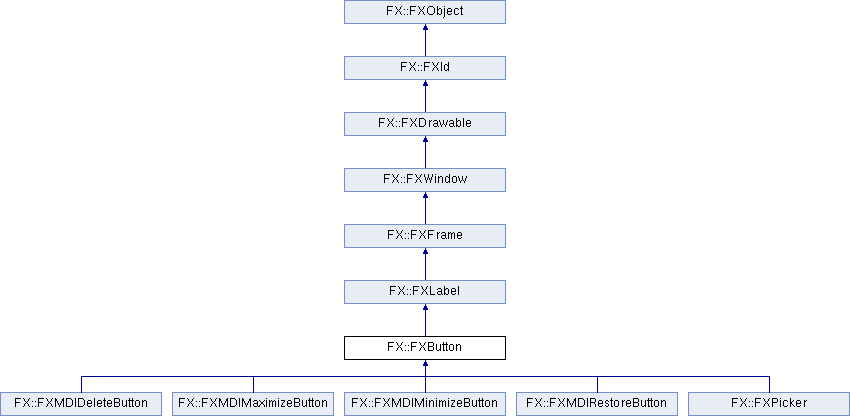

Inheritance diagram for FX::FXButton:

Public Member Functions
long	onPaint (FXObject , FXSelector, void )
long	onUpdate (FXObject , FXSelector, void )
long	onEnter (FXObject , FXSelector, void )
long	onLeave (FXObject , FXSelector, void )
long	onFocusIn (FXObject , FXSelector, void )
long	onFocusOut (FXObject , FXSelector, void )
long	onUngrabbed (FXObject , FXSelector, void )
long	onLeftBtnPress (FXObject , FXSelector, void )
long	onLeftBtnRelease (FXObject , FXSelector, void )
long	onKeyPress (FXObject , FXSelector, void )
long	onKeyRelease (FXObject , FXSelector, void )
long	onHotKeyPress (FXObject , FXSelector, void )
long	onHotKeyRelease (FXObject , FXSelector, void )
long	onCheck (FXObject , FXSelector, void )
long	onUncheck (FXObject , FXSelector, void )
long	onCmdSetValue (FXObject , FXSelector, void )
long	onCmdSetIntValue (FXObject , FXSelector, void )
long	onCmdGetIntValue (FXObject , FXSelector, void )
	FXButton (FXComposite p, const FXString &text, FXIcon ic=NULL, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=BUTTON_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_PAD, FXint pr=DEFAULT_PAD, FXint pt=DEFAULT_PAD, FXint pb=DEFAULT_PAD)
	Construct button with text and icon.
virtual FXbool	canFocus () const
	Returns true because a button can receive focus.
virtual void	setFocus ()
	Move the focus to this window.
virtual void	killFocus ()
	Remove the focus from this window.
virtual void	setDefault (FXuchar flag=TRUE)
	Set as default button.
void	setState (FXuint s)
	Set the button state.
FXuint	getState () const
	Get the button state.
void	setButtonStyle (FXuint style)
	Set the button style flags.
FXuint	getButtonStyle () const
	Get the button style flags.
Protected Attributes
FXuchar	state

Detailed Description

A button provides a push button, with optional icon and/or text label.

When pressed, the button widget sends a SEL_COMMAND to its target. Passing the BUTTON_TOOLBAR style option gives buttons a "flat" look, and causes the edge of the button to be raised when the cursor moves over it. Passing BUTTON_DEFAULT allows the button to become the default button in a dialog, when the focus moves to it. The default widget in a dialog is the widget which will accept the RETURN key when it is pressed. The BUTTON_INITIAL flag makes the button the default widget when the focus moves to a widget which can not itself be a default widget. There should be only a single button in the dialog which is the initial default; typically this is the OK or CLOSE button. The option BUTTON_AUTOGRAY (BUTTON_AUTOHIDE) causes the button to be grayed out (hidden) if its handler does not respond to the SEL_UPDATE message. This is useful when messages are delegated, for example when using a multiple document interface, where the ultimate destination of a message can be changed.

The documentation for this class was generated from the following file:

/home/jeroen/FOX/fox/fox-1.7.32/include/FXButton.h
