FX::FXText Class Reference

The text widget provides a multi-line text editing control. More...

#include <FXText.h>

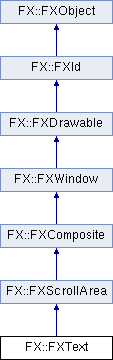

Inheritance diagram for FX::FXText:

Public Types
enum	{   STYLE_MASK = 0x00FF, STYLE_TEXT = 0x0100, STYLE_SELECTED = 0x0200, STYLE_CONTROL = 0x0400,   STYLE_HILITE = 0x0800, STYLE_ACTIVE = 0x1000, STYLE_INSERT = 0x2000 }
	Internal style flags.
enum	{ STYLE_UNDERLINE = 0x0001, STYLE_STRIKEOUT = 0x0002, STYLE_BOLD = 0x0004 }
	Text highlight style flags.
enum	{   SelectNone, SelectChars, SelectWords, SelectRows,   SelectLines }
	Selection modes.
enum	{   ID_CURSOR_TOP =FXScrollArea::ID_LAST, ID_CURSOR_BOTTOM, ID_CURSOR_HOME, ID_CURSOR_END,   ID_CURSOR_RIGHT, ID_CURSOR_LEFT, ID_CURSOR_UP, ID_CURSOR_DOWN,   ID_CURSOR_PAGEUP, ID_CURSOR_PAGEDOWN, ID_CURSOR_WORD_LEFT, ID_CURSOR_WORD_RIGHT,   ID_CURSOR_SHIFT_TOP, ID_CURSOR_SHIFT_BOTTOM, ID_CURSOR_SHIFT_HOME, ID_CURSOR_SHIFT_END,   ID_CURSOR_SHIFT_UP, ID_CURSOR_SHIFT_DOWN, ID_CURSOR_SHIFT_LEFT, ID_CURSOR_SHIFT_RIGHT,   ID_CURSOR_SHIFT_PAGEUP, ID_CURSOR_SHIFT_PAGEDOWN, ID_CURSOR_SHIFT_WORD_LEFT, ID_CURSOR_SHIFT_WORD_RIGHT,   ID_CURSOR_ALT_UP, ID_CURSOR_ALT_DOWN, ID_CURSOR_ALT_LEFT, ID_CURSOR_ALT_RIGHT,   ID_SCROLL_UP, ID_SCROLL_DOWN, ID_SCROLL_TOP, ID_SCROLL_BOTTOM,   ID_SCROLL_CENTER, ID_INSERT_STRING, ID_INSERT_NEWLINE, ID_INSERT_NEWLINE_ONLY,   ID_INSERT_NEWLINE_INDENT, ID_INSERT_TAB, ID_INSERT_HARDTAB, ID_INSERT_SOFTTAB,   ID_CUT_SEL, ID_COPY_SEL, ID_DELETE_SEL, ID_PASTE_SEL,   ID_PASTE_MIDDLE, ID_SELECT_CHAR, ID_SELECT_WORD, ID_SELECT_LINE,   ID_SELECT_ALL, ID_SELECT_MATCHING, ID_SELECT_BRACE, ID_SELECT_BRACK,   ID_SELECT_PAREN, ID_SELECT_ANG, ID_DESELECT_ALL, ID_BACKSPACE_CHAR,   ID_BACKSPACE_WORD, ID_BACKSPACE_BOL, ID_DELETE_CHAR, ID_DELETE_WORD,   ID_DELETE_EOL, ID_DELETE_ALL, ID_DELETE_LINE, ID_TOGGLE_EDITABLE,   ID_TOGGLE_OVERSTRIKE, ID_CURSOR_POS, ID_CURSOR_ROW, ID_CURSOR_COLUMN,   ID_JOIN_LINES, ID_SHIFT_LEFT, ID_SHIFT_RIGHT, ID_SHIFT_TABLEFT,   ID_SHIFT_TABRIGHT, ID_CLEAN_INDENT, ID_COPY_LINE, ID_MOVE_LINE_UP,   ID_MOVE_LINE_DOWN, ID_UPPER_CASE, ID_LOWER_CASE, ID_GOTO_MATCHING,   ID_LEFT_BRACE, ID_LEFT_BRACK, ID_LEFT_PAREN, ID_LEFT_ANG,   ID_RIGHT_BRACE, ID_RIGHT_BRACK, ID_RIGHT_PAREN, ID_RIGHT_ANG,   ID_BLINK, ID_FLASH, ID_TEXT_ROWS, ID_TEXT_SIZE,   ID_LAST }
Public Types inherited from FX::FXScrollArea
enum	{ ID_AUTOSCROLL =FXComposite::ID_LAST, ID_VSCROLLED, ID_HSCROLLED, ID_LAST }
Public Types inherited from FX::FXWindow
enum	WindowClass {   ClassNormal, ClassGraphic, ClassSpecial, ClassRoot,   ClassShell, ClassPopup, ClassToolTip, ClassMain,   ClassDialog, ClassToolBar, ClassSplash, ClassNotify,   ClassPanel, ClassDesktop }
	Window classes. More...
enum	{   ID_NONE, ID_HIDE, ID_SHOW, ID_TOGGLESHOWN,   ID_LOWER, ID_RAISE, ID_DELETE, ID_DISABLE,   ID_ENABLE, ID_TOGGLEENABLED, ID_UNCHECK, ID_CHECK,   ID_UNKNOWN, ID_UPDATE, ID_TIPTIMER, ID_SETVALUE,   ID_SETINTVALUE, ID_SETLONGVALUE, ID_SETREALVALUE, ID_SETSTRINGVALUE,   ID_SETICONVALUE, ID_SETINTRANGE, ID_SETREALRANGE, ID_GETINTVALUE,   ID_GETLONGVALUE, ID_GETREALVALUE, ID_GETSTRINGVALUE, ID_GETICONVALUE,   ID_GETINTRANGE, ID_GETREALRANGE, ID_SETHELPSTRING, ID_GETHELPSTRING,   ID_SETTIPSTRING, ID_GETTIPSTRING, ID_QUERY_MENU, ID_HOTKEY,   ID_ACCEL, ID_UNPOST, ID_POST, ID_MDI_TILEHORIZONTAL,   ID_MDI_TILEVERTICAL, ID_MDI_CASCADE, ID_MDI_MAXIMIZE, ID_MDI_MINIMIZE,   ID_MDI_RESTORE, ID_MDI_CLOSE, ID_MDI_WINDOW, ID_MDI_MENUWINDOW,   ID_MDI_MENUMINIMIZE, ID_MDI_MENURESTORE, ID_MDI_MENUCLOSE, ID_MDI_NEXT,   ID_MDI_PREV, ID_LAST }

Public Member Functions
long	onPaint (FXObject *, FXSelector, void *)
long	onEnter (FXObject *, FXSelector, void *)
long	onLeave (FXObject *, FXSelector, void *)
long	onBlink (FXObject *, FXSelector, void *)
long	onFlash (FXObject *, FXSelector, void *)
long	onFocusIn (FXObject *, FXSelector, void *)
long	onFocusOut (FXObject *, FXSelector, void *)
long	onMotion (FXObject *, FXSelector, void *)
long	onAutoScroll (FXObject *, FXSelector, void *)
long	onLeftBtnPress (FXObject *, FXSelector, void *)
long	onLeftBtnRelease (FXObject *, FXSelector, void *)
long	onMiddleBtnPress (FXObject *, FXSelector, void *)
long	onMiddleBtnRelease (FXObject *, FXSelector, void *)
long	onRightBtnPress (FXObject *, FXSelector, void *)
long	onRightBtnRelease (FXObject *, FXSelector, void *)
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onUngrabbed (FXObject *, FXSelector, void *)
long	onBeginDrag (FXObject *, FXSelector, void *)
long	onEndDrag (FXObject *, FXSelector, void *)
long	onDragged (FXObject *, FXSelector, void *)
long	onDNDEnter (FXObject *, FXSelector, void *)
long	onDNDLeave (FXObject *, FXSelector, void *)
long	onDNDMotion (FXObject *, FXSelector, void *)
long	onDNDDrop (FXObject *, FXSelector, void *)
long	onDNDRequest (FXObject *, FXSelector, void *)
long	onSelectionLost (FXObject *, FXSelector, void *)
long	onSelectionGained (FXObject *, FXSelector, void *)
long	onSelectionRequest (FXObject *, FXSelector, void *ptr)
long	onClipboardLost (FXObject *, FXSelector, void *)
long	onClipboardGained (FXObject *, FXSelector, void *)
long	onClipboardRequest (FXObject *, FXSelector, void *)
long	onCmdSetTip (FXObject *, FXSelector, void *)
long	onCmdGetTip (FXObject *, FXSelector, void *)
long	onCmdSetHelp (FXObject *, FXSelector, void *)
long	onCmdGetHelp (FXObject *, FXSelector, void *)
long	onQueryTip (FXObject *, FXSelector, void *)
long	onQueryHelp (FXObject *, FXSelector, void *)
long	onUpdIsEditable (FXObject *, FXSelector, void *)
long	onUpdHaveSelection (FXObject *, FXSelector, void *)
long	onUpdHaveEditableSelection (FXObject *, FXSelector, void *)
long	onIMEStart (FXObject *, FXSelector, void *)
long	onTipTimer (FXObject *, FXSelector, void *)
long	onCmdSetStringValue (FXObject *, FXSelector, void *)
long	onCmdGetStringValue (FXObject *, FXSelector, void *)
long	onCmdCursorTop (FXObject *, FXSelector, void *)
long	onCmdCursorBottom (FXObject *, FXSelector, void *)
long	onCmdCursorHome (FXObject *, FXSelector, void *)
long	onCmdCursorEnd (FXObject *, FXSelector, void *)
long	onCmdCursorRight (FXObject *, FXSelector, void *)
long	onCmdCursorLeft (FXObject *, FXSelector, void *)
long	onCmdCursorUp (FXObject *, FXSelector, void *)
long	onCmdCursorDown (FXObject *, FXSelector, void *)
long	onCmdCursorPageUp (FXObject *, FXSelector, void *)
long	onCmdCursorPageDown (FXObject *, FXSelector, void *)
long	onCmdCursorWordLeft (FXObject *, FXSelector, void *)
long	onCmdCursorWordRight (FXObject *, FXSelector, void *)
long	onCmdCursorShiftTop (FXObject *, FXSelector, void *)
long	onCmdCursorShiftBottom (FXObject *, FXSelector, void *)
long	onCmdCursorShiftHome (FXObject *, FXSelector, void *)
long	onCmdCursorShiftEnd (FXObject *, FXSelector, void *)
long	onCmdCursorShiftRight (FXObject *, FXSelector, void *)
long	onCmdCursorShiftLeft (FXObject *, FXSelector, void *)
long	onCmdCursorShiftUp (FXObject *, FXSelector, void *)
long	onCmdCursorShiftDown (FXObject *, FXSelector, void *)
long	onCmdCursorShiftPageUp (FXObject *, FXSelector, void *)
long	onCmdCursorShiftPageDown (FXObject *, FXSelector, void *)
long	onCmdCursorShiftWordLeft (FXObject *, FXSelector, void *)
long	onCmdCursorShiftWordRight (FXObject *, FXSelector, void *)
long	onCmdCursorAltUp (FXObject *, FXSelector, void *)
long	onCmdCursorAltDown (FXObject *, FXSelector, void *)
long	onCmdCursorAltLeft (FXObject *, FXSelector, void *)
long	onCmdCursorAltRight (FXObject *, FXSelector, void *)
long	onCmdScrollUp (FXObject *, FXSelector, void *)
long	onCmdScrollDown (FXObject *, FXSelector, void *)
long	onCmdScrollTop (FXObject *, FXSelector, void *)
long	onCmdScrollBottom (FXObject *, FXSelector, void *)
long	onCmdScrollCenter (FXObject *, FXSelector, void *)
long	onCmdInsertString (FXObject *, FXSelector, void *)
long	onCmdInsertNewline (FXObject *, FXSelector, void *)
long	onCmdInsertNewlineOnly (FXObject *, FXSelector, void *)
long	onCmdInsertNewlineIndent (FXObject *, FXSelector, void *)
long	onCmdInsertTab (FXObject *, FXSelector, void *)
long	onCmdInsertHardTab (FXObject *, FXSelector, void *)
long	onCmdInsertSoftTab (FXObject *, FXSelector, void *)
long	onCmdCutSel (FXObject *, FXSelector, void *)
long	onCmdCopySel (FXObject *, FXSelector, void *)
long	onCmdPasteSel (FXObject *, FXSelector, void *)
long	onCmdPasteMiddle (FXObject *, FXSelector, void *)
long	onCmdDeleteSel (FXObject *, FXSelector, void *)
long	onCmdSelectChar (FXObject *, FXSelector, void *)
long	onCmdSelectWord (FXObject *, FXSelector, void *)
long	onCmdSelectLine (FXObject *, FXSelector, void *)
long	onCmdSelectMatching (FXObject *, FXSelector, void *)
long	onCmdSelectEnclosing (FXObject *, FXSelector, void *)
long	onCmdSelectAll (FXObject *, FXSelector, void *)
long	onCmdDeselectAll (FXObject *, FXSelector, void *)
long	onCmdBackspaceChar (FXObject *, FXSelector, void *)
long	onCmdBackspaceWord (FXObject *, FXSelector, void *)
long	onCmdBackspaceBol (FXObject *, FXSelector, void *)
long	onCmdDeleteChar (FXObject *, FXSelector, void *)
long	onCmdDeleteWord (FXObject *, FXSelector, void *)
long	onCmdDeleteEol (FXObject *, FXSelector, void *)
long	onCmdDeleteAll (FXObject *, FXSelector, void *)
long	onCmdDeleteLine (FXObject *, FXSelector, void *)
long	onCmdShiftText (FXObject *, FXSelector, void *)
long	onCmdChangeCase (FXObject *, FXSelector, void *)
long	onCmdCopyLine (FXObject *, FXSelector, void *)
long	onCmdMoveLineUp (FXObject *, FXSelector, void *)
long	onCmdMoveLineDown (FXObject *, FXSelector, void *)
long	onCmdJoinLines (FXObject *, FXSelector, void *)
long	onCmdBlockBeg (FXObject *, FXSelector, void *)
long	onCmdBlockEnd (FXObject *, FXSelector, void *)
long	onCmdGotoMatching (FXObject *, FXSelector, void *)
long	onCmdCursorPos (FXObject *, FXSelector, void *)
long	onUpdCursorPos (FXObject *, FXSelector, void *)
long	onCmdCursorRow (FXObject *, FXSelector, void *)
long	onUpdCursorRow (FXObject *, FXSelector, void *)
long	onCmdCursorColumn (FXObject *, FXSelector, void *)
long	onUpdCursorColumn (FXObject *, FXSelector, void *)
long	onCmdToggleEditable (FXObject *, FXSelector, void *)
long	onUpdToggleEditable (FXObject *, FXSelector, void *)
long	onCmdToggleOverstrike (FXObject *, FXSelector, void *)
long	onUpdToggleOverstrike (FXObject *, FXSelector, void *)
long	onUpdTextRows (FXObject *, FXSelector, void *)
long	onUpdTextSize (FXObject *, FXSelector, void *)
	FXText (FXComposite *p, FXObject *tgt=nullptr, FXSelector sel=0, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=3, FXint pr=3, FXint pt=2, FXint pb=2)
	Construct multi-line text widget.
virtual void	create ()
	Create server-side resources.
virtual void	detach ()
	Detach server-side resources.
virtual FXint	getContentWidth ()
	Get default width.
virtual FXint	getContentHeight ()
	Get default height.
virtual FXint	getVisibleX () const
	Return visible scroll-area x position.
virtual FXint	getVisibleY () const
	Return visible scroll-area y position.
virtual FXint	getVisibleWidth () const
	Return visible scroll-area width.
virtual FXint	getVisibleHeight () const
	Return visible scroll-area height.
virtual FXint	getDefaultWidth ()
	Return default width.
virtual FXint	getDefaultHeight ()
	Return default height.
virtual void	layout ()
	Perform layout.
virtual void	enable ()
	Enable the text widget.
virtual void	disable ()
	Disable the text widget.
virtual void	recalc ()
	Need to recalculate size.
virtual FXbool	canFocus () const
	Returns true because a text widget can receive focus.
virtual void	setFocus ()
	Move the focus to this window.
virtual void	killFocus ()
	Remove the focus from this window.
void	setModified (FXbool mod=true)
	Set modified flag.
FXbool	isModified () const
	Return true if text was modified.
void	setEditable (FXbool edit=true)
	Set editable mode.
FXbool	isEditable () const
	Return true if text is editable.
void	setOverstrike (FXbool over=true)
	Set overstrike mode.
FXbool	isOverstrike () const
	Return true if overstrike mode in effect.
FXint	getLength () const
	Return length of buffer.
FXint	getNumRows () const
	Return number of rows in buffer.
FXint	getByte (FXint pos) const
	Get byte at position in text buffer.
FXint	getStyle (FXint pos) const
	Get style at position pos.
FXint	getCharLen (FXint pos) const
	Get length of wide character at position pos.
FXwchar	getChar (FXint pos) const
	Get wide character at position pos.
FXint	dec (FXint pos) const
	Retreat to the previous valid utf8 character start.
FXint	inc (FXint pos) const
	Advance to the next valid utf8 character start.
FXint	lineStart (FXint pos) const
	Return position of begin of line containing position pos.
FXint	lineEnd (FXint pos) const
	Return position of end of line containing position pos.
FXint	nextLine (FXint pos, FXint nl=1) const
	Return start of next line.
FXint	prevLine (FXint pos, FXint nl=1) const
	Return start of previous line.
FXint	rowStart (FXint pos) const
	Return row start.
FXint	rowEnd (FXint pos) const
	Return row end.
FXint	nextRow (FXint pos, FXint nr=1) const
	Return start of next row.
FXint	prevRow (FXint pos, FXint nr=1) const
	Return start of previous row.
FXint	leftWord (FXint pos) const
	Return end of previous word.
FXint	rightWord (FXint pos) const
	Return begin of next word.
FXint	wordStart (FXint pos) const
	Return begin of word.
FXint	wordEnd (FXint pos) const
	Return end of word.
FXint	validPos (FXint pos) const
	Return validated utf8 character start position.
FXint	countCols (FXint start, FXint end) const
	Count number of columns taken up by some text. More...
FXint	countRows (FXint start, FXint end) const
	Count number of rows taken up by some text. More...
FXint	countLines (FXint start, FXint end) const
	Count number of newlines. More...
virtual FXint	setText (const FXchar *text, FXint num, FXbool notify=false)
	Change the text in the buffer to new text.
virtual FXint	setText (const FXString &text, FXbool notify=false)
virtual FXint	setStyledText (const FXchar *text, FXint num, FXint style=0, FXbool notify=false)
	Change the text in the buffer to new text.
virtual FXint	setStyledText (const FXString &text, FXint style=0, FXbool notify=false)
virtual FXint	changeStyle (FXint pos, FXint num, FXint style)
	Change style of text range.
virtual FXint	changeStyle (FXint pos, const FXchar *style, FXint num)
	Change style of text range from style-array.
virtual FXint	changeStyle (FXint pos, const FXString &style)
virtual FXint	appendText (const FXchar *text, FXint num, FXbool notify=false)
	Append n bytes of text at the end of the buffer.
virtual FXint	appendText (const FXString &text, FXbool notify=false)
virtual FXint	appendStyledText (const FXchar *text, FXint num, FXint style=0, FXbool notify=false)
	Append n bytes of text at the end of the buffer.
virtual FXint	appendStyledText (const FXString &text, FXint style=0, FXbool notify=false)
virtual FXint	replaceText (FXint pos, FXint del, const FXchar *text, FXint ins, FXbool notify=false)
	Replace del bytes at pos by ins characters of text.
virtual FXint	replaceText (FXint pos, FXint del, const FXString &text, FXbool notify=false)
virtual FXint	replaceStyledText (FXint pos, FXint del, const FXchar *text, FXint ins, FXint style=0, FXbool notify=false)
	Replace del bytes at pos by ins characters of text.
virtual FXint	replaceStyledText (FXint pos, FXint del, const FXString &text, FXint style=0, FXbool notify=false)
virtual FXint	replaceTextBlock (FXint startpos, FXint endpos, FXint startcol, FXint endcol, const FXchar *text, FXint num, FXbool notify=false)
	Replace text columns startcol to endcol in lines starting at startpos to endpos by new text.
virtual FXint	replaceTextBlock (FXint startpos, FXint endpos, FXint startcol, FXint endcol, const FXString &text, FXbool notify=false)
virtual FXint	replaceStyledTextBlock (FXint startpos, FXint endpos, FXint startcol, FXint endcol, const FXchar *text, FXint num, FXint style=0, FXbool notify=false)
	Replace text columns startcol to endcol in lines starting at startpos to endpos by new text with given style.
virtual FXint	replaceStyledTextBlock (FXint startpos, FXint endpos, FXint startcol, FXint endcol, const FXString &text, FXint style=0, FXbool notify=false)
virtual FXint	insertText (FXint pos, const FXchar *text, FXint num, FXbool notify=false)
	Insert n bytes of text at position pos into the buffer.
virtual FXint	insertText (FXint pos, const FXString &text, FXbool notify=false)
virtual FXint	insertStyledText (FXint pos, const FXchar *text, FXint num, FXint style=0, FXbool notify=false)
	Insert n bytes of text at position pos into the buffer.
virtual FXint	insertStyledText (FXint pos, const FXString &text, FXint style=0, FXbool notify=false)
virtual FXint	insertTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXchar *text, FXint num, FXbool notify=false)
	Insert text columns at startcol in line starting at startpos to endpos.
virtual FXint	insertTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXString &text, FXbool notify=false)
virtual FXint	insertStyledTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXchar *text, FXint num, FXint style=0, FXbool notify=false)
	Insert text columns at startcol in line starting at startpos to endpos with given style.
virtual FXint	insertStyledTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXString &text, FXint style=0, FXbool notify=false)
virtual FXint	overstrikeTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXchar *text, FXint num, FXbool notify=false)
	Overstrike text block.
virtual FXint	overstrikeTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXString &text, FXbool notify=false)
virtual FXint	overstrikeStyledTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXchar *text, FXint num, FXint style=0, FXbool notify=false)
	Overstrike styled text block.
virtual FXint	overstrikeStyledTextBlock (FXint startpos, FXint endpos, FXint startcol, const FXString &text, FXint style=0, FXbool notify=false)
FXString	getText () const
	Return entire text as string.
void	getText (FXchar *text, FXint num) const
	Retrieve text into buffer.
void	getText (FXString &text) const
	Retrieve text into string.
void	extractText (FXchar *text, FXint pos, FXint num) const
	Extract n bytes of text from position pos into already allocated buffer.
void	extractText (FXString &text, FXint pos, FXint num) const
	Extract n bytes of text from position pos into string text.
FXString	extractText (FXint pos, FXint num) const
	Return n bytes of contents of text buffer from position pos.
void	extractStyle (FXchar *style, FXint pos, FXint num) const
	Extract n bytes of style info from position pos into already allocated buffer.
void	extractStyle (FXString &style, FXint pos, FXint num) const
	Extract n bytes of style info from position pos into string text.
FXString	extractStyle (FXint pos, FXint num) const
	Return n bytes of style info from buffer from position pos.
void	extractTextBlock (FXString &text, FXint startpos, FXint endpos, FXint startcol, FXint endcol) const
	Extract text columns startcol to endcol from lines starting at startpos to endpos.
FXString	extractTextBlock (FXint startpos, FXint endpos, FXint startcol, FXint endcol) const
	Return text columns startcol to endcol from lines starting at startpos to endpos.
virtual FXint	removeText (FXint pos, FXint num, FXbool notify=false)
	Remove n bytes of text at position pos from the buffer.
virtual FXint	removeTextBlock (FXint startpos, FXint endpos, FXint startcol, FXint endcol, FXbool notify=false)
	Remove columns startcol to endcol from lines starting at startpos to endpos.
virtual FXint	clearText (FXbool notify=false)
	Remove all text from the buffer.
virtual FXbool	selectAll (FXbool notify=false)
	Select all text.
virtual FXbool	setSelection (FXint pos, FXint len, FXbool notify=false)
	Select range of len characters starting at given position pos.
virtual FXbool	extendSelection (FXint pos, FXuint sel=SelectChars, FXbool notify=false)
	Extend the primary selection from the anchor to the given position.
virtual FXbool	setBlockSelection (FXint trow, FXint lcol, FXint brow, FXint rcol, FXbool notify=false)
	Select block of characters within given box.
virtual FXbool	extendBlockSelection (FXint row, FXint col, FXbool notify=false)
	Extend primary selection from anchor to given row, column.
virtual FXbool	setSelection (FXint spos, FXint epos, FXint scol, FXint ecol, FXbool notify=false)
	Select range or block (scol<=ecol) of text.
virtual FXbool	killSelection (FXbool notify=false)
	Kill or deselect primary selection.
FXbool	isPosSelected (FXint pos) const
	Return true if position pos is selected.
FXbool	isPosSelected (FXint pos, FXint col) const
	Return true if position pos (and column col) is selected.
FXint	getSelStartPos () const
	Return selection start position.
FXint	getSelEndPos () const
	Return selection end position.
FXint	getSelStartColumn () const
	Return selection start column.
FXint	getSelEndColumn () const
	Return selection end column.
FXbool	copySelection ()
	Copy primary selection to clipboard.
FXbool	cutSelection (FXbool notify=false)
	Cut primary selection to clipboard.
FXbool	deleteSelection (FXbool notify=false)
	Delete primary selection.
FXbool	pasteSelection (FXbool notify=false)
	Paste primary ("middle-mouse") selection.
FXbool	pasteClipboard (FXbool notify=false)
	Paste clipboard.
FXbool	replaceSelection (const FXString &text, FXbool notify=false)
	Replace primary selection by other text.
FXString	getSelectedText () const
	Get selected text.
FXbool	setHighlight (FXint start, FXint len)
	Highlight len characters starting at given position pos.
FXbool	killHighlight ()
	Unhighlight the text.
void	setTopLine (FXint pos)
	Make line containing pos the top line.
FXint	getTopLine () const
	Return position of top line.
void	setBottomLine (FXint pos)
	Make line containing pos the bottom line.
FXint	getBottomLine () const
	Return the position of the bottom line.
void	setCenterLine (FXint pos)
	Make line containing pos the center line.
FXbool	isPosVisible (FXint pos) const
	Return true if line containing position is fully visible.
void	makePositionVisible (FXint pos)
	Scroll text to make the given position visible.
FXint	getPosAt (FXint x, FXint y) const
	Return text position at given visible x,y coordinate.
FXint	getPosContaining (FXint x, FXint y) const
	Return text position containing x, y coordinate.
FXint	getXOfPos (FXint pos) const
	Return screen x-coordinate of pos.
FXint	getYOfPos (FXint pos) const
	Return screen y-coordinate of pos.
FXint	getRowColumnAt (FXint x, FXint y, FXint &row, FXint &col) const
	Return closest position and (row,col) of given x,y coordinate. More...
FXint	getXOfRowColumn (FXint row, FXint col) const
	Return screen x-coordinate of unconstrained (row,col).
FXint	getYOfRowColumn (FXint row, FXint col) const
	Return screen y-coordinate of unconstrained (row,col).
virtual void	setCursorPos (FXint pos, FXbool notify=false)
	Set the cursor position.
FXint	getCursorPos () const
	Return the cursor position.
void	setCursorRowColumn (FXint row, FXint col, FXbool notify=false)
	Set cursor row, column.
void	setCursorRow (FXint row, FXbool notify=false)
	Set cursor row.
FXint	getCursorRow () const
	Return cursor row.
void	setCursorColumn (FXint col, FXbool notify=false)
	Set cursor column.
FXint	getCursorColumn () const
	Return cursor row, i.e. indent position.
void	setAnchorPos (FXint pos)
	Set the anchor position.
FXint	getAnchorPos () const
	Return the anchor position.
void	setAnchorRowColumn (FXint row, FXint col)
	Set anchor row and column.
FXint	getAnchorRow () const
	Return anchor row.
FXint	getAnchorColumn () const
	Return anchor row.
void	moveCursor (FXint pos, FXbool notify=false)
	Move cursor to position, and scroll into view.
void	moveCursorRowColumn (FXint row, FXint col, FXbool notify=false)
	Move cursor to row and column, and scroll into view.
void	moveCursorAndSelect (FXint pos, FXuint sel, FXbool notify=false)
	Move cursor to position, and extend the selection to this point.
void	moveCursorRowColumnAndSelect (FXint row, FXint col, FXbool notify=false)
	Move cursor to row and column, and extend the block selection to this point.
FXbool	findText (const FXString &string, FXint *beg=nullptr, FXint *end=nullptr, FXint start=0, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP|SEARCH_EXACT, FXint npar=1)
	Search for string in text buffer, returning the extent of the string in beg and end. More...
void	setTextStyle (FXuint style)
	Change text widget style.
FXuint	getTextStyle () const
	Return text widget style.
void	setFont (FXFont *fnt)
	Change text font.
FXFont *	getFont () const
	Return text font.
void	setVisibleRows (FXint rows)
	Change number of visible rows.
FXint	getVisibleRows () const
	Return number of visible rows.
void	setVisibleColumns (FXint cols)
	Change number of visible columns.
FXint	getVisibleColumns () const
	Return number of visible columns.
void	setMarginTop (FXint pt)
	Change top margin.
FXint	getMarginTop () const
	Return top margin.
void	setMarginBottom (FXint pb)
	Change bottom margin.
FXint	getMarginBottom () const
	Return bottom margin.
void	setMarginLeft (FXint pl)
	Change left margin.
FXint	getMarginLeft () const
	Return left margin.
void	setMarginRight (FXint pr)
	Change right margin.
FXint	getMarginRight () const
	Return right margin.
FXint	getBarColumns () const
	Return number of columns used for line numbers.
void	setBarColumns (FXint cols)
	Change number of columns used for line numbers.
void	setWrapColumns (FXint cols)
	Set wrap columns.
FXint	getWrapColumns () const
	Return wrap columns.
void	setTabColumns (FXint cols)
	Change tab columns.
FXint	getTabColumns () const
	Return tab columns.
void	setTextColor (FXColor clr)
	Change text color.
FXColor	getTextColor () const
	Return text color.
void	setSelBackColor (FXColor clr)
	Change selected background color.
FXColor	getSelBackColor () const
	Return selected background color.
void	setSelTextColor (FXColor clr)
	Change selected text color.
FXColor	getSelTextColor () const
	Return selected text color.
void	setHiliteTextColor (FXColor clr)
	Change highlighted text color.
FXColor	getHiliteTextColor () const
	Return highlighted text color.
void	setHiliteBackColor (FXColor clr)
	Change highlighted background color.
FXColor	getHiliteBackColor () const
	Return highlighted background color.
void	setActiveBackColor (FXColor clr)
	Change active background color.
FXColor	getActiveBackColor () const
	Return active background color.
void	setCursorColor (FXColor clr)
	Change cursor color.
FXColor	getCursorColor () const
	Return cursor color.
void	setNumberColor (FXColor clr)
	Change line number color.
FXColor	getNumberColor () const
	Return line number color.
void	setBarColor (FXColor clr)
	Change bar color.
FXColor	getBarColor () const
	Return bar color.
FXbool	setStyled (FXbool styled=true)
	Set styled text mode; return true if success.
FXbool	isStyled () const
	Return true if style buffer.
void	setHiliteStyles (FXHiliteStyle *styles)
	Set highlight styles. More...
FXHiliteStyle *	getHiliteStyles () const
	Return current value of the style table.
void	setHiliteMatchTime (FXTime t)
	Change brace and parenthesis match highlighting time, in nanoseconds. More...
FXTime	getHiliteMatchTime () const
	Return brace and parenthesis match highlighting time, in nanoseconds.
void	setDelimiters (const FXchar *delims=textDelimiters)
	Change delimiters of words.
const FXchar *	getDelimiters () const
	Return word delimiters.
void	setHelpText (const FXString &text)
	Set help text.
FXString	getHelpText () const
	Return help text.
void	setTipText (const FXString &text)
	Set the tool tip message for this text widget.
FXString	getTipText () const
	Get the tool tip message for this text widget.
virtual void	save (FXStream &store) const
	Save to a stream.
virtual void	load (FXStream &store)
	Load from a stream.
virtual	~FXText ()
	Destructor.
Public Member Functions inherited from FX::FXScrollArea
long	onMouseWheel (FXObject *, FXSelector, void *)
long	onHScrollerChanged (FXObject *, FXSelector, void *)
long	onVScrollerChanged (FXObject *, FXSelector, void *)
long	onHScrollerDragged (FXObject *, FXSelector, void *)
long	onVScrollerDragged (FXObject *, FXSelector, void *)
long	onAutoScroll (FXObject *, FXSelector, void *)
void	setPosition (FXint x, FXint y)
	Set the current position.
void	getPosition (FXint &x, FXint &y) const
	Get the current position.
FXint	getContentX () const
	Return content area x position.
FXint	getContentY () const
	Return content area y position.
FXbool	isHorizontalScrollable () const
	Return true if horizontally scrollable.
FXbool	isVerticalScrollable () const
	Return true if vertically scrollable.
void	setScrollStyle (FXuint style)
	Change scroll style.
FXuint	getScrollStyle () const
	Return scroll style.
FXScrollBar *	horizontalScrollBar () const
	Return a pointer to the horizontal scrollbar.
FXScrollBar *	verticalScrollBar () const
	Return a pointer to the vertical scrollbar.
virtual	~FXScrollArea ()
	Destructor.
Public Member Functions inherited from FX::FXComposite
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onFocusNext (FXObject *, FXSelector, void *)
long	onFocusPrev (FXObject *, FXSelector, void *)
long	onCmdUpdate (FXObject *, FXSelector, void *)
	FXComposite (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Constructor.
virtual void	destroy ()
	Destroy server-side resources.
FXint	maxChildWidth () const
	Return the width of the widest child window.
FXint	maxChildHeight () const
	Return the height of the tallest child window.
virtual FXbool	isComposite () const
	Overrides this virtual function to return true.
virtual	~FXComposite ()
	Destructor.
Public Member Functions inherited from FX::FXWindow
long	onPaint (FXObject *, FXSelector, void *)
long	onMap (FXObject *, FXSelector, void *)
long	onUnmap (FXObject *, FXSelector, void *)
long	onConfigure (FXObject *, FXSelector, void *)
long	onUpdate (FXObject *, FXSelector, void *)
long	onMotion (FXObject *, FXSelector, void *)
long	onMouseWheel (FXObject *, FXSelector, void *)
long	onEnter (FXObject *, FXSelector, void *)
long	onLeave (FXObject *, FXSelector, void *)
long	onLeftBtnPress (FXObject *, FXSelector, void *)
long	onLeftBtnRelease (FXObject *, FXSelector, void *)
long	onMiddleBtnPress (FXObject *, FXSelector, void *)
long	onMiddleBtnRelease (FXObject *, FXSelector, void *)
long	onRightBtnPress (FXObject *, FXSelector, void *)
long	onRightBtnRelease (FXObject *, FXSelector, void *)
long	onSpaceBallMotion (FXObject *, FXSelector, void *)
long	onSpaceBallButtonPress (FXObject *, FXSelector, void *)
long	onSpaceBallButtonRelease (FXObject *, FXSelector, void *)
long	onBeginDrag (FXObject *, FXSelector, void *)
long	onEndDrag (FXObject *, FXSelector, void *)
long	onDragged (FXObject *, FXSelector, void *)
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onUngrabbed (FXObject *, FXSelector, void *)
long	onDestroy (FXObject *, FXSelector, void *)
long	onFocusSelf (FXObject *, FXSelector, void *)
long	onFocusIn (FXObject *, FXSelector, void *)
long	onFocusOut (FXObject *, FXSelector, void *)
long	onSelectionLost (FXObject *, FXSelector, void *)
long	onSelectionGained (FXObject *, FXSelector, void *)
long	onSelectionRequest (FXObject *, FXSelector, void *)
long	onClipboardLost (FXObject *, FXSelector, void *)
long	onClipboardGained (FXObject *, FXSelector, void *)
long	onClipboardRequest (FXObject *, FXSelector, void *)
long	onDNDEnter (FXObject *, FXSelector, void *)
long	onDNDLeave (FXObject *, FXSelector, void *)
long	onDNDMotion (FXObject *, FXSelector, void *)
long	onDNDDrop (FXObject *, FXSelector, void *)
long	onDNDRequest (FXObject *, FXSelector, void *)
long	onQueryHelp (FXObject *, FXSelector, void *)
long	onQueryTip (FXObject *, FXSelector, void *)
long	onCmdShow (FXObject *, FXSelector, void *)
long	onCmdHide (FXObject *, FXSelector, void *)
long	onUpdToggleShown (FXObject *, FXSelector, void *)
long	onCmdToggleShown (FXObject *, FXSelector, void *)
long	onCmdRaise (FXObject *, FXSelector, void *)
long	onCmdLower (FXObject *, FXSelector, void *)
long	onCmdEnable (FXObject *, FXSelector, void *)
long	onCmdDisable (FXObject *, FXSelector, void *)
long	onUpdToggleEnabled (FXObject *, FXSelector, void *)
long	onCmdToggleEnabled (FXObject *, FXSelector, void *)
long	onCmdUpdate (FXObject *, FXSelector, void *)
long	onUpdYes (FXObject *, FXSelector, void *)
long	onCmdDelete (FXObject *, FXSelector, void *)
	FXWindow (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Constructor.
FXWindow *	getParent () const
	Return a pointer to the parent window.
FXWindow *	getOwner () const
	Return a pointer to the owner window.
FXWindow *	getNext () const
	Return a pointer to the next (sibling) window, if any.
FXWindow *	getPrev () const
	Return a pointer to the previous (sibling) window , if any.
FXWindow *	getFirst () const
	Return a pointer to this window's first child window , if any.
FXWindow *	getLast () const
	Return a pointer to this window's last child window, if any.
FXWindow *	getFocus () const
	Return a pointer to the currently focused child window.
FXWindow *	getShell () const
	Return a pointer to the shell window.
FXWindow *	getRoot () const
	Return a pointer to the root window.
virtual WindowClass	getWindowClass () const
	Get window class.
void	setKey (FXuint k)
	Change window key.
FXuint	getKey () const
	Return window key.
FXWindow *	getChildWithKey (FXuint k) const
	Return child window with given window key.
void	setTarget (FXObject *t)
	Set the message target object for this window.
FXObject *	getTarget () const
	Get the message target object for this window, if any.
void	setSelector (FXSelector sel)
	Set the message identifier for this window.
FXSelector	getSelector () const
	Get the message identifier for this window.
FXint	getX () const
	Get this window's x-coordinate, in the parent's coordinate system.
FXint	getY () const
	Get this window's y-coordinate, in the parent's coordinate system.
virtual FXint	getWidthForHeight (FXint givenheight)
	Return width for given height.
virtual FXint	getHeightForWidth (FXint givenwidth)
	Return height for given width.
void	setX (FXint x)
	Set this window's x-coordinate, in the parent's coordinate system.
void	setY (FXint y)
	Set this window's y-coordinate, in the parent's coordinate system.
void	setWidth (FXint w)
	Set the window width; and flag the widget as being in need of layout by its parent. More...
void	setHeight (FXint h)
	Set the window height; and flag the widget as being in need of layout by its parent. More...
void	setLayoutHints (FXuint lout)
	Set layout hints for this window.
FXuint	getLayoutHints () const
	Get layout hints for this window.
FXAccelTable *	getAccelTable () const
	Return a pointer to the accelerator table.
void	setAccelTable (FXAccelTable *acceltable)
	Set the accelerator table.
void	addHotKey (FXHotKey code)
	Add a hot key.
void	remHotKey (FXHotKey code)
	Remove a hot key.
void	setHelpTag (const FXString &text)
	Change help tag for this widget.
const FXString &	getHelpTag () const
	Get the help tag for this widget.
FXbool	isShell () const
	Return true if window is a shell window.
FXbool	isOwnerOf (const FXWindow *window) const
	Return true if specified window is owned by this window.
FXbool	isChildOf (const FXWindow *window) const
	Return true if specified window is ancestor of this window.
FXbool	containsChild (const FXWindow *child) const
	Return true if this window contains child in its subtree.
FXWindow *	getChildAt (FXint x, FXint y) const
	Return the child window at specified coordinates.
FXint	numChildren () const
	Return the number of child windows for this window.
FXint	indexOfChild (const FXWindow *window) const
	Return the index (starting from zero) of the specified child window, or -1 if the window is not a child or NULL.
FXWindow *	childAtIndex (FXint index) const
	Return the child window at specified index, or NULL if the index is negative or out of range.
FXComposeContext *	getComposeContext () const
	Return compose context.
void	createComposeContext ()
	Create compose context.
void	destroyComposeContext ()
	Destroy compose context.
FXbool	cursorShown () const
	Is cursor shown.
void	showCursor (FXbool flag=true)
	Show or hide the cursor.
void	setDefaultCursor (FXCursor *cur)
	Set the default cursor for this window.
FXCursor *	getDefaultCursor () const
	Return the default cursor for this window.
void	setDragCursor (FXCursor *cur)
	Set the drag cursor for this window.
FXCursor *	getDragCursor () const
	Return the drag cursor for this window.
FXbool	getCursorPosition (FXint &x, FXint &y, FXuint &buttons) const
	Return the cursor position and mouse button-state.
FXbool	setCursorPosition (FXint x, FXint y)
	Warp the cursor to the new position.
FXbool	isActive () const
	Return true if the window is active.
FXbool	hasFocus () const
	Return true if this window has the focus.
FXbool	inFocusChain () const
	Return true if this window is in focus chain.
FXbool	isDefault () const
	Return true if this is the default window.
virtual void	setDefault (FXuchar flag=true)
	This changes the default window which responds to the Return key in a dialog. More...
FXWindow *	findDefault () const
	Find default window among this window's children.
FXbool	isInitial () const
	Return true if this is the initial default window.
void	setInitial (FXbool flag=true)
	Make this window the initial default window.
FXWindow *	findInitial () const
	Find inital default window among this window's children.
FXbool	isEnabled () const
	Return true if this window is able to receive mouse and keyboard events.
virtual void	attach (FXID w)
	Attach foreign window handle to this window.
virtual void	setShape (const FXRegion &region)
	Set window shape by means of region.
virtual void	setShape (FXBitmap *bitmap)
	Set window shape by means of bitmap.
virtual void	setShape (FXIcon *icon)
	Set window shape by means of icon.
virtual void	clearShape ()
	Clear window shape.
virtual void	raise ()
	Raise this window to the top of the stacking order.
virtual void	lower ()
	Lower this window to the bottom of the stacking order.
virtual void	move (FXint x, FXint y)
	Move the window immediately, in the parent's coordinate system. More...
virtual void	resize (FXint w, FXint h)
	Resize the window to the specified width and height immediately, updating the server representation as well, if the window was realized. More...
virtual void	position (FXint x, FXint y, FXint w, FXint h)
	Move and resize the window immediately, in the parent's coordinate system. More...
void	forceRefresh ()
	Generate a SEL_UPDATE message for the window and its children.
virtual void	reparent (FXWindow *father, FXWindow *other=nullptr)
	Reparent this window under new father before other.
void	scroll (FXint x, FXint y, FXint w, FXint h, FXint dx, FXint dy) const
	Scroll rectangle x,y,w,h by a shift of dx,dy.
void	update (FXint x, FXint y, FXint w, FXint h) const
	Mark the specified rectangle to be repainted later.
void	update () const
	Mark the entire window to be repainted later.
void	repaint (FXint x, FXint y, FXint w, FXint h) const
	Process any outstanding repaint messages immediately, for the given rectangle.
void	repaint () const
	Process any outstanding repaint messages immediately.
FXbool	grabbed () const
	Return true if the window has been grabbed.
void	grab ()
	Grab the mouse to this window; future mouse events will be reported to this window even while the cursor goes outside of this window.
void	ungrab ()
	Release the mouse grab.
FXbool	grabbedKeyboard () const
	Return true if active grab is in effect.
void	grabKeyboard ()
	Grab keyboard device.
void	ungrabKeyboard ()
	Ungrab keyboard device.
FXbool	shown () const
	Return true if the window is shown.
virtual void	show ()
	Show this window.
virtual void	hide ()
	Hide this window.
FXbool	underCursor () const
	Return true if the window is under the cursor.
FXbool	hasSelection () const
	Return true if this window owns the primary selection.
FXbool	acquireSelection (const FXDragType *types, FXuint numtypes)
	Try to acquire the primary selection, given a list of drag types.
FXbool	releaseSelection ()
	Release the primary selection.
FXbool	hasClipboard () const
	Return true if this window owns the clipboard.
FXbool	acquireClipboard (const FXDragType *types, FXuint numtypes)
	Try to acquire the clipboard, given a list of drag types.
FXbool	releaseClipboard ()
	Release the clipboard.
FXbool	isDropEnabled () const
	Return true if this window is able to receive drops.
virtual void	dropEnable ()
	Enable this window to receive drops.
virtual void	dropDisable ()
	Disable this window from receiving drops.
FXbool	isDragging () const
	Return true if a drag operaion has been initiated from this window.
FXbool	beginDrag (const FXDragType *types, FXuint numtypes)
	Initiate a drag operation with a list of previously registered drag types.
FXbool	handleDrag (FXint x, FXint y, FXDragAction action=DRAG_COPY)
	When dragging, inform the drop-target of the new position and the drag action.
FXDragAction	endDrag (FXbool drop=true)
	Terminate the drag operation with or without actually dropping the data Returns the action performed by the target.
FXbool	isDropTarget () const
	Return true if this window is the target of a drop.
void	setDragRectangle (FXint x, FXint y, FXint w, FXint h, FXbool wantupdates=true) const
	When being dragged over, indicate that no further SEL_DND_MOTION messages are required while the cursor is inside the given rectangle.
void	clearDragRectangle () const
	When being dragged over, indicate we want to receive SEL_DND_MOTION messages every time the cursor moves.
void	acceptDrop (FXDragAction action=DRAG_ACCEPT) const
	When being dragged over, indicate acceptance or rejection of the dragged data.
FXDragAction	didAccept () const
	The target accepted our drop.
void	dropFinished (FXDragAction action=DRAG_REJECT) const
	Sent by the drop target in response to SEL_DND_DROP. More...
FXbool	inquireDNDTypes (FXDNDOrigin origin, FXDragType *&types, FXuint &numtypes) const
	When being dragged over, inquire the drag types which are being offered.
FXbool	offeredDNDType (FXDNDOrigin origin, FXDragType type) const
	When being dragged over, return true if we are offered the given drag type.
FXDragAction	inquireDNDAction () const
	When being dragged over, return the drag action.
FXbool	setDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *data, FXuint size) const
	Set DND data; the array must be allocated with allocElms() and ownership is transferred to the system.
FXbool	setDNDData (FXDNDOrigin origin, FXDragType type, const FXString &string) const
	Set DND data from string value.
FXbool	getDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *&data, FXuint &size) const
	Get DND data; the caller becomes the owner of the array and must free it with freeElms().
FXbool	getDNDData (FXDNDOrigin origin, FXDragType type, FXString &string) const
	Get DND data into string value.
virtual FXbool	contains (FXint parentx, FXint parenty) const
	Return true if window logically contains the given point.
void	translateCoordinatesFrom (FXint &tox, FXint &toy, const FXWindow *fromwindow, FXint fromx, FXint fromy) const
	Translate coordinates from fromwindow's coordinate space to this window's coordinate space.
void	translateCoordinatesTo (FXint &tox, FXint &toy, const FXWindow *towindow, FXint fromx, FXint fromy) const
	Translate coordinates from this window's coordinate space to towindow's coordinate space.
virtual void	setBackColor (FXColor clr)
	Set window background color.
FXColor	getBackColor () const
	Get background color.
virtual FXbool	doesSaveUnder () const
	Does save-unders.
virtual const FXchar *	tr (const FXchar *text, const FXchar *hint=nullptr, FXint count=-1) const FX_FORMAT(2)
	Translate message for localization; using the current FXTranslator, an attempt is made to translate the given message into the current language. More...
virtual	~FXWindow ()
	Destroy window.
Public Member Functions inherited from FX::FXDrawable
FXVisual *	getVisual () const
	Get the visual.
FXint	getWidth () const
	Width of drawable.
FXint	getHeight () const
	Height of drawable.
void	setVisual (FXVisual *vis)
	Change visual.
virtual	~FXDrawable ()
	Cleanup.
Public Member Functions inherited from FX::FXId
FXApp *	getApp () const
	Get application.
FXID	id () const
	Get XID handle.
void	setUserData (FXptr ptr)
	Set user data pointer.
FXptr	getUserData () const
	Get user data pointer.
virtual	~FXId ()
	Destructor.
Public Member Functions inherited from FX::FXObject
const FXchar *	getClassName () const
	Get class name of some object.
FXbool	isMemberOf (const FXMetaClass *metaclass) const
	Check if object is member of metaclass.
virtual long	tryHandle (FXObject *sender, FXSelector sel, void *ptr)
	Try handle message safely, catching certain exceptions.
virtual long	onDefault (FXObject *, FXSelector, void *)
	Called for unhandled messages.
virtual	~FXObject ()
	Virtual destructor.

Static Public Attributes
static const FXchar	textDelimiters []
	Default text delimiters.
Static Public Attributes inherited from FX::FXWindow
static FXDragType	octetType
static FXDragType	deleteType
static FXDragType	textType
static FXDragType	colorType
static FXDragType	urilistType
static FXDragType	utf8Type
static FXDragType	utf16Type
static FXDragType	actionType
static const FXDragType	stringType
static const FXDragType	imageType
static const FXchar	octetTypeName []
static const FXchar	deleteTypeName []
static const FXchar	textTypeName []
static const FXchar	colorTypeName []
static const FXchar	urilistTypeName []
static const FXchar	utf8TypeName []
static const FXchar	utf16TypeName []
static const FXchar	actionTypeName []

Protected Types
enum	{   MOUSE_NONE, MOUSE_CHARS, MOUSE_WORDS, MOUSE_LINES,   MOUSE_BLOCK, MOUSE_SCROLL, MOUSE_DRAG, MOUSE_TRYDRAG }
Protected Types inherited from FX::FXWindow
enum	{   FLAG_SHOWN = 0x00000001, FLAG_ENABLED = 0x00000002, FLAG_UPDATE = 0x00000004, FLAG_DROPTARGET = 0x00000008,   FLAG_FOCUSED = 0x00000010, FLAG_DIRTY = 0x00000020, FLAG_RECALC = 0x00000040, FLAG_TIP = 0x00000080,   FLAG_HELP = 0x00000100, FLAG_DEFAULT = 0x00000200, FLAG_INITIAL = 0x00000400, FLAG_SHELL = 0x00000800,   FLAG_ACTIVE = 0x00001000, FLAG_PRESSED = 0x00002000, FLAG_KEY = 0x00004000, FLAG_CARET = 0x00008000,   FLAG_CHANGED = 0x00010000, FLAG_LASSO = 0x00020000, FLAG_TRYDRAG = 0x00040000, FLAG_DODRAG = 0x00080000,   FLAG_SCROLLINSIDE = 0x00100000, FLAG_SCROLLING = 0x00200000, FLAG_OWNED = 0x00400000, FLAG_CURSOR = 0x00800000 }

Protected Member Functions
void	movegap (FXint pos)
void	sizegap (FXint sz)
FXwchar	nxtChar (FXint &pos) const
FXwchar	prvChar (FXint &pos) const
FXint	charWidth (FXwchar ch, FXint indent) const
FXint	xoffset (FXint start, FXint pos) const
FXint	wrap (FXint start) const
FXint	rowFromPos (FXint pos) const
FXint	posFromRow (FXint row) const
FXint	columnFromPos (FXint start, FXint pos) const
FXint	posFromColumn (FXint start, FXint col) const
FXint	indentOfLine (FXint start, FXint pos) const
FXbool	isdelimiter (FXwchar w) const
FXint	measureText (FXint start, FXint end, FXint &wmax, FXint &hmax) const
void	calcVisRows (FXint s, FXint e)
void	recompute ()
FXint	matchForward (FXint pos, FXint end, FXwchar l, FXwchar r, FXint level) const
FXint	matchBackward (FXint pos, FXint beg, FXwchar l, FXwchar r, FXint level) const
FXint	findMatching (FXint pos, FXint beg, FXint end, FXwchar ch, FXint level) const
void	flashMatching ()
void	moveContents (FXint x, FXint y)
FXint	changeBeg (FXint pos) const
FXint	changeEnd (FXint pos) const
void	mutation (FXint pos, FXint ncins, FXint ncdel, FXint nrins, FXint nrdel)
FXint	overstruck (FXint start, FXint end, const FXchar *text, FXint num)
void	drawCursor (FXuint state)
virtual void	paintCursor (FXDCWindow &dc) const
virtual void	eraseCursor (FXDCWindow &dc) const
virtual void	eraseCursorOverhang ()
virtual void	drawBufferText (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h, FXint pos, FXint n, FXuint style) const
virtual void	fillBufferRect (FXDCWindow &dc, FXint x, FXint y, FXint w, FXint h, FXuint style) const
virtual FXuint	styleOf (FXint beg, FXint end, FXint row, FXint col, FXint pos) const
virtual void	drawTextRow (FXDCWindow &dc, FXint row) const
virtual void	drawContents (FXDCWindow &dc) const
virtual void	drawNumbers (FXDCWindow &dc) const
virtual void	replace (FXint pos, FXint del, const FXchar *text, FXint ins, FXint style)
void	updateRow (FXint row) const
void	updateLines (FXint startpos, FXint endpos) const
void	updateRange (FXint startpos, FXint endpos) const
FXint	shiftText (FXint startpos, FXint endpos, FXint shift, FXbool notify)
FXbool	deletePendingSelection (FXbool notify)
Protected Member Functions inherited from FX::FXScrollArea
	FXScrollArea (FXComposite *p, FXuint opts, FXint x, FXint y, FXint w, FXint h)
FXbool	startAutoScroll (FXEvent *event, FXbool onlywheninside=false)
void	stopAutoScroll ()
void	placeScrollBars (FXint vw, FXint vh)
Protected Member Functions inherited from FX::FXComposite
	FXComposite (FXApp *a, FXVisual *vis)
	FXComposite (FXApp *a, FXWindow *own, FXuint opts, FXint x, FXint y, FXint w, FXint h)
Protected Member Functions inherited from FX::FXWindow
virtual FXbool	doesOverrideRedirect () const
void	addColormapWindows ()
void	remColormapWindows ()
	FXWindow (FXApp *a, FXVisual *vis)
	FXWindow (FXApp *a, FXWindow *own, FXuint opts, FXint x, FXint y, FXint w, FXint h)
Protected Member Functions inherited from FX::FXDrawable
	FXDrawable (FXApp *a, FXint w, FXint h)
Protected Member Functions inherited from FX::FXId
	FXId (FXApp *a)

Protected Attributes
FXchar *	buffer
FXchar *	sbuffer
FXint *	visrows
FXint	nvisrows
FXint	gapbeg
FXint	gaplen
FXint	gapend
FXint	length
FXint	nrows
FXint	toppos
FXint	toprow
FXint	keeppos
FXTextSelection	select
FXTextSelection	hilite
FXint	anchorpos
FXint	anchorrow
FXint	anchorcol
FXint	anchorvcol
FXint	cursorpos
FXint	cursorrow
FXint	cursorcol
FXint	cursorvcol
FXint	prefcol
FXint	margintop
FXint	marginbottom
FXint	marginleft
FXint	marginright
FXint	wrapwidth
FXint	wrapcolumns
FXint	tabwidth
FXint	tabcolumns
FXint	barwidth
FXint	barcolumns
FXFont *	font
FXColor	textColor
FXColor	selbackColor
FXColor	seltextColor
FXColor	hilitebackColor
FXColor	hilitetextColor
FXColor	activebackColor
FXColor	numberColor
FXColor	cursorColor
FXColor	barColor
FXint	textWidth
FXint	textHeight
const FXchar *	delimiters
FXString	clipped
FXint	vrows
FXint	vcols
FXString	help
FXString	tip
FXHiliteStyle *	hilitestyles
FXuint	blink
FXTime	matchtime
FXint	grabx
FXint	graby
FXuchar	mode
FXbool	modified
Protected Attributes inherited from FX::FXScrollArea
FXScrollBar *	horizontal
FXScrollBar *	vertical
FXScrollCorner *	corner
FXint	pos_x
FXint	pos_y
Protected Attributes inherited from FX::FXWindow
FXComposeContext *	composeContext
FXCursor *	defaultCursor
FXCursor *	dragCursor
FXAccelTable *	accelTable
FXObject *	target
FXSelector	message
FXint	xpos
FXint	ypos
FXColor	backColor
FXString	tag
FXuint	flags
FXuint	options
Protected Attributes inherited from FX::FXDrawable
FXVisual *	visual
FXint	width
FXint	height
Protected Attributes inherited from FX::FXId
FXID	xid

Additional Inherited Members
Static Public Member Functions inherited from FX::FXWindow
static FXWindow *	commonAncestor (FXWindow *a, FXWindow *b)
	Return the common ancestor of window a and window b.
static FXbool	before (const FXWindow *a, const FXWindow *b)
	Return true if sibling a <= sibling b in list.
static FXbool	after (const FXWindow *a, const FXWindow *b)
	Return true if sibling a >= sibling b in list.

Detailed Description

The text widget provides a multi-line text editing control.

The widget supports both clipboard for cut-and-paste operations, as well as drag and drop of text. Text may be edited interactively by the user, or changed through the programmatic interface.

During interactive editing, the text widget notifies its target of changes to the current cursor location by issueing SEL_CHANGED callbacks. If text is inserted, deleted, or replaced, the widget will send SEL_INSERTED, SEL_DELETED, or SEL_REPLACED messages, and pass along an FXTextChange to indicate what changes were made to the text buffer, in sufficient detail for recording undo and redo info.

When selections are made, SEL_SELECTED or SEL_DESELECTED messages are issued, passing along the range of affected text affected as an array of four numbers: position, number of bytes, column, number of columns.

As the cursor is being moved, matching parentheses, brackets, and braces may be highlighted for a short time if the brace-matching feature has been enabled.

An auto-indent feature, enabled by TEXT_AUTOINDENT flag, will automatically enter a number of spaces if a newline is entered, starting new text entry at the same level of indent as the previous line.

When styled mode is turned on, the text widget will maintain a parallel style-buffer along side the text-buffer. This style buffer is used to index into a style table (FXHiliteStyle), which describes what colors and visual attributes are to be used to draw the each character in the text buffer.

When text is added to the widget programmatically, a style index may be passed in to apply to the newly added text. It is also possible to change the style of the text without changing the text itself. This could be used to form the basis of a colorizing text editor, for example.

The first entry in the style table corresponds to a style index of 1. Style index 0 is used for the default text style, the style that would be shown if the styled mode is not in effect.

In a typical scenario, the contents of the style buffer is either directly written when the text is added to the widget, or is continually modified by editing the text via syntax-based highlighting engine which colors the text based on syntactical patterns.

The text widget has several controlling flags which affect its behaviour and display. TEXT_READONLY sets the widget in read-only mode. In this mode, the contents of the widget may only be changed programmatically, although it is possible for the user to select and paste out of the text buffer. The TEXT_WORDWRAP flag turns on line-wrapping. Normally, long lines extend past the right-hand side of the visible buffer. In wrap mode, text is folded at natural break points (breakable spaces, tabs, etc). The default wrap mode is a fluid wrap, that is, the text is reflowed as the widget is resized. The flag TEXT_FIXEDWRAP disables the fluid wrap mode and makes the widget wrap at a fixed column, regardless of the width of the widget. The TEXT_OVERSTRIKE mode causes text entered by the user to overstrike already existing text, instead of inserting new next. This mode can be toggled interactively by hitting the INS key on the keyboard. The flag TEXT_NO_TABS causes a TAB key to be replaced by the appropriate number of spaces when entered interactively; however, the user can still enter a TAB by entering Ctrl+TAB. The TEXT_SHOWACTIVE mode will cause the line containing the current cursor location to be highlighted. This makes it easier to find the insertion point when scrolling back and forth a large document. The flag TEXT_SHOWMATCH will briefly flash the matching brace, parenthesis, or bracket when the cursor is positioned at brace, parenthesis, or bracket.

Member Function Documentation

countCols()

FXint FX::FXText::countCols	(	FXint	start,
		FXint	end
	)		const

Count number of columns taken up by some text.

Start should be on a row start.

countLines()

FXint FX::FXText::countLines	(	FXint	start,
		FXint	end
	)		const

Count number of newlines.

Start should be on a line start.

countRows()

FXint FX::FXText::countRows	(	FXint	start,
		FXint	end
	)		const

Count number of rows taken up by some text.

Start and end should be on a row start.

findText()

FXbool FX::FXText::findText	(	const FXString &	string,
		FXint *	beg = nullptr,
		FXint *	end = nullptr,
		FXint	start = 0,
		FXuint	flags = SEARCH_FORWARD|SEARCH_WRAP|SEARCH_EXACT,
		FXint	npar = 1
	)

Search for string in text buffer, returning the extent of the string in beg and end.

The search starts from the given starting position, scans forward (SEARCH_FORWARD) or backward (SEARCH_BACKWARD), and wraps around if SEARCH_WRAP has been specified. If neither SEARCH_FORWARD or SEARCH_BACKWARD flags are set, an anchored match is performed at the given starting position. The search type is either a plain search (SEARCH_EXACT), case insensitive search (SEARCH_IGNORECASE), or regular expression search (SEARCH_REGEX). For regular expression searches, capturing parentheses are used if npar is greater than 1; in this case, the number of entries in the beg[], end[] arrays must be npar also. If either beg or end or both are NULL, internal arrays are used.

getRowColumnAt()

FXint FX::FXText::getRowColumnAt	(	FXint	x,
		FXint	y,
		FXint &	row,
		FXint &	col
	)		const

Return closest position and (row,col) of given x,y coordinate.

The (row,col) is unconstrained, i.e. calculated as if tabs and area past the newline is comprised of spaces; the returned position however is inside the text. Note that when using proportional fonts, the width of a logical space inside a tab is variable, to account for the logical columns in a tab.

setHiliteMatchTime()

void FX::FXText::setHiliteMatchTime ( FXTime  t )

inline

Change brace and parenthesis match highlighting time, in nanoseconds.

If highlighting for a small interval, only flash if the matching brace is visible. If the highlighting interval is set to forever, highlighting stays on till cursor moves, and the brace is highlighted even if not (yet) visible. Note that this may be expensive as a large part of the text buffer could be visited to find the matching brace.

setHiliteStyles()

void FX::FXText::setHiliteStyles

(

FXHiliteStyle *

styles

)

Set highlight styles.

The table of styles is only referenced by the widget; it is not copied. Thus, multiple widgets may share a common style table. Some care must be taken to populate the style-buffer only with numbers inside the style table.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.85/include/FXText.h
