FX::FXIconList Class Reference

A Icon List Widget displays a list of items, each with a text and optional icon. More...

#include <FXIconList.h>

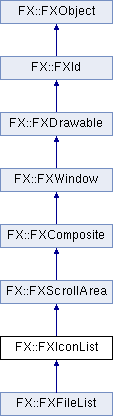

Inheritance diagram for FX::FXIconList:

List of all members.

Public Types
enum	{   ID_LOOKUPTIMER = FXScrollArea::ID_LAST, ID_HEADER, ID_SHOW_DETAILS, ID_SHOW_MINI_ICONS,   ID_SHOW_BIG_ICONS, ID_ARRANGE_BY_ROWS, ID_ARRANGE_BY_COLUMNS, ID_SELECT_ALL,   ID_DESELECT_ALL, ID_SELECT_INVERSE, ID_LAST }
Public Member Functions
long	onPaint (FXObject *, FXSelector, void *)
long	onEnter (FXObject *, FXSelector, void *)
long	onLeave (FXObject *, FXSelector, void *)
long	onUngrabbed (FXObject *, FXSelector, void *)
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onLeftBtnPress (FXObject *, FXSelector, void *)
long	onLeftBtnRelease (FXObject *, FXSelector, void *)
long	onRightBtnPress (FXObject *, FXSelector, void *)
long	onRightBtnRelease (FXObject *, FXSelector, void *)
long	onMotion (FXObject *, FXSelector, void *)
long	onQueryTip (FXObject *, FXSelector, void *)
long	onQueryHelp (FXObject *, FXSelector, void *)
long	onTipTimer (FXObject *, FXSelector, void *)
long	onCmdSelectAll (FXObject *, FXSelector, void *)
long	onCmdDeselectAll (FXObject *, FXSelector, void *)
long	onCmdSelectInverse (FXObject *, FXSelector, void *)
long	onCmdArrangeByRows (FXObject *, FXSelector, void *)
long	onUpdArrangeByRows (FXObject *, FXSelector, void *)
long	onCmdArrangeByColumns (FXObject *, FXSelector, void *)
long	onUpdArrangeByColumns (FXObject *, FXSelector, void *)
long	onCmdShowDetails (FXObject *, FXSelector, void *)
long	onUpdShowDetails (FXObject *, FXSelector, void *)
long	onCmdShowBigIcons (FXObject *, FXSelector, void *)
long	onUpdShowBigIcons (FXObject *, FXSelector, void *)
long	onCmdShowMiniIcons (FXObject *, FXSelector, void *)
long	onUpdShowMiniIcons (FXObject *, FXSelector, void *)
long	onChgHeader (FXObject *, FXSelector, void *)
long	onClkHeader (FXObject *, FXSelector, void *)
long	onFocusIn (FXObject *, FXSelector, void *)
long	onFocusOut (FXObject *, FXSelector, void *)
long	onClicked (FXObject *, FXSelector, void *)
long	onDoubleClicked (FXObject *, FXSelector, void *)
long	onTripleClicked (FXObject *, FXSelector, void *)
long	onCommand (FXObject *, FXSelector, void *)
long	onAutoScroll (FXObject *, FXSelector, void *)
long	onLookupTimer (FXObject *, FXSelector, void *)
long	onCmdSetValue (FXObject *, FXSelector, void *)
long	onCmdGetIntValue (FXObject *, FXSelector, void *)
long	onCmdSetIntValue (FXObject *, FXSelector, void *)
	FXIconList (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=ICONLIST_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Construct icon list with no items in it initially.
virtual void	create ()
	Create server-side resources.
virtual void	detach ()
	Detach server-side resources.
virtual void	recalc ()
	Recalculate layout.
virtual void	layout ()
	Perform layout.
virtual FXint	getVisibleY () const
	Return visible area y position.
virtual FXint	getVisibleHeight () const
	Return visible area height.
virtual FXint	getContentWidth ()
	Compute and return content width.
virtual FXint	getContentHeight ()
	Return content height.
virtual FXbool	canFocus () const
	Icon list can receive focus.
virtual void	setFocus ()
	Move the focus to this window.
virtual void	killFocus ()
	Remove the focus from this window.
virtual void	resize (FXint w, FXint h)
	Resize this window to the specified width and height.
virtual void	position (FXint x, FXint y, FXint w, FXint h)
	Move and resize this window in the parent's coordinates.
FXint	getNumItems () const
	Return number of items.
FXint	getNumRows () const
	Return number of rows.
FXint	getNumCols () const
	Return number of columns.
FXHeader *	getHeader () const
	Return header control.
void	setHeaders (const FXchar **strings, FXint size=1)
	Set headers from array of strings.
void	setHeaders (const FXString &strings, FXint size=1)
	Set headers from newline separated strings.
void	appendHeader (const FXString &text, FXIcon *icon=NULL, FXint size=1)
	Append header with given text and optional icon.
void	removeHeader (FXint index)
	Remove header at index.
void	setHeaderText (FXint index, const FXString &text)
	Change text of header at index.
FXString	getHeaderText (FXint index) const
	Return text of header at index.
void	setHeaderIcon (FXint index, FXIcon *icon)
	Change icon of header at index.
FXIcon *	getHeaderIcon (FXint index) const
	Return icon of header at index.
void	setHeaderSize (FXint index, FXint size)
	Change size of header at index.
FXint	getHeaderSize (FXint index) const
	Return width of header at index.
FXint	getNumHeaders () const
	Return number of headers.
FXIconItem *	getItem (FXint index) const
	Return the item at the given index.
FXint	setItem (FXint index, FXIconItem *item, FXbool notify=false)
	Replace the item with a [possibly subclassed] item.
FXint	setItem (FXint index, const FXString &text, FXIcon *big=NULL, FXIcon *mini=NULL, void *ptr=NULL, FXbool notify=false)
	Replace items text, icons, and user-data pointer.
FXint	fillItems (const FXchar **strings, FXIcon *big=NULL, FXIcon *mini=NULL, void *ptr=NULL, FXbool notify=false)
	Fill list by appending items from array of strings.
FXint	fillItems (const FXString &strings, FXIcon *big=NULL, FXIcon *mini=NULL, void *ptr=NULL, FXbool notify=false)
	Fill list by appending items from newline separated strings.
FXint	insertItem (FXint index, FXIconItem *item, FXbool notify=false)
	Insert a new [possibly subclassed] item at the give index.
FXint	insertItem (FXint index, const FXString &text, FXIcon *big=NULL, FXIcon *mini=NULL, void *ptr=NULL, FXbool notify=false)
	Insert item at index with given text, icons, and user-data pointer.
FXint	appendItem (FXIconItem *item, FXbool notify=false)
	Append a [possibly subclassed] item to the end of the list.
FXint	appendItem (const FXString &text, FXIcon *big=NULL, FXIcon *mini=NULL, void *ptr=NULL, FXbool notify=false)
	Append new item with given text and optional icons, and user-data pointer.
FXint	prependItem (FXIconItem *item, FXbool notify=false)
	Prepend a [possibly subclassed] item to the end of the list.
FXint	prependItem (const FXString &text, FXIcon *big=NULL, FXIcon *mini=NULL, void *ptr=NULL, FXbool notify=false)
	Prepend new item with given text and optional icons, and user-data pointer.
FXint	moveItem (FXint newindex, FXint oldindex, FXbool notify=false)
	Move item from oldindex to newindex.
FXIconItem *	extractItem (FXint index, FXbool notify=false)
	Extract item from list.
void	removeItem (FXint index, FXbool notify=false)
	Remove item from list.
void	clearItems (FXbool notify=false)
	Remove all items from list.
FXint	getItemWidth () const
	Return item width.
FXint	getItemHeight () const
	Return item height.
virtual FXint	getItemAt (FXint x, FXint y) const
	Return index of item at x,y, or -1 if none.
FXint	findItem (const FXString &text, FXint start=-1, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
	Search items by name, beginning from item start.
FXint	findItemByData (const void *ptr, FXint start=-1, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
	Search items by associated user data, beginning from item start.
virtual void	makeItemVisible (FXint index)
	Scroll to make item at index visible.
void	setItemText (FXint index, const FXString &text)
	Change item text.
FXString	getItemText (FXint index) const
	Return item text.
void	setItemBigIcon (FXint index, FXIcon *icon, FXbool owned=false)
	Change item big icon.
FXIcon *	getItemBigIcon (FXint index) const
	Return big icon of item at index.
void	setItemMiniIcon (FXint index, FXIcon *icon, FXbool owned=false)
	Change item mini icon.
FXIcon *	getItemMiniIcon (FXint index) const
	Return mini icon of item at index.
void	setItemData (FXint index, void *ptr)
	Change item user-data pointer.
void *	getItemData (FXint index) const
	Return item user-data pointer.
FXbool	isItemSelected (FXint index) const
	Return true if item at index is selected.
FXbool	isItemCurrent (FXint index) const
	Return true if item at index is current.
FXbool	isItemVisible (FXint index) const
	Return true if item at index is visible.
FXbool	isItemEnabled (FXint index) const
	Return true if item at index is enabled.
FXint	hitItem (FXint index, FXint x, FXint y, FXint ww=1, FXint hh=1) const
	Return item hit code: 0 outside, 1 icon, 2 text.
void	updateItem (FXint index) const
	Repaint item at index.
virtual FXbool	enableItem (FXint index)
	Enable item at index.
virtual FXbool	disableItem (FXint index)
	Disable item at index.
virtual FXbool	selectItem (FXint index, FXbool notify=false)
	Select item at index.
virtual FXbool	deselectItem (FXint index, FXbool notify=false)
	Deselect item at index.
virtual FXbool	toggleItem (FXint index, FXbool notify=false)
	Toggle item at index.
virtual FXbool	selectInRectangle (FXint x, FXint y, FXint w, FXint h, FXbool notify=false)
	Select items in rectangle.
virtual FXbool	extendSelection (FXint index, FXbool notify=false)
	Extend selection from anchor index to index.
virtual FXbool	killSelection (FXbool notify=false)
	Deselect all items.
virtual void	setCurrentItem (FXint index, FXbool notify=false)
	Change current item index.
FXint	getCurrentItem () const
	Return current item index, or -1 if none.
void	setAnchorItem (FXint index)
	Change anchor item index.
FXint	getAnchorItem () const
	Return anchor item index, or -1 if none.
void	sortItems ()
	Sort items.
FXIconListSortFunc	getSortFunc () const
	Return sort function.
void	setSortFunc (FXIconListSortFunc func)
	Change sort function.
void	setFont (FXFont *fnt)
	Change text font.
FXFont *	getFont () const
	Return text font.
FXColor	getTextColor () const
	Return normal text color.
void	setTextColor (FXColor clr)
	Change normal text color.
FXColor	getSelBackColor () const
	Return selected text background.
void	setSelBackColor (FXColor clr)
	Change selected text background.
FXColor	getSelTextColor () const
	Return selected text color.
void	setSelTextColor (FXColor clr)
	Change selected text color.
void	setItemSpace (FXint s)
	Change maximum item space for each item.
FXint	getItemSpace () const
	Return maximum item space.
FXuint	getListStyle () const
	Get the current icon list style.
void	setListStyle (FXuint style)
	Set the current icon list style.
void	setHelpText (const FXString &text)
	Set the status line help text for this widget.
const FXString &	getHelpText () const
	Get the status line help text for this widget.
virtual void	save (FXStream &store) const
	Save list to a stream.
virtual void	load (FXStream &store)
	Load list from a stream.
virtual	~FXIconList ()
	Destructor.
Static Public Member Functions
static FXint	ascending (const FXIconItem *a, const FXIconItem *b)
static FXint	descending (const FXIconItem *a, const FXIconItem *b)
static FXint	ascendingCase (const FXIconItem *a, const FXIconItem *b)
static FXint	descendingCase (const FXIconItem *a, const FXIconItem *b)
Protected Member Functions
void	recompute ()
void	startLasso (FXint ax, FXint ay)
void	updateLasso (FXint cx, FXint cy)
void	endLasso ()
void	getrowscols (FXint &nr, FXint &nc, FXint w, FXint h) const
void	lassoChanged (FXint ox, FXint oy, FXint ow, FXint oh, FXint nx, FXint ny, FXint nw, FXint nh, FXbool notify)
virtual void	moveContents (FXint x, FXint y)
virtual FXIconItem *	createItem (const FXString &text, FXIcon *big, FXIcon *mini, void *ptr)
Static Protected Member Functions
static FXint	compareSection (const FXchar *p, const FXchar *q, FXint s)
static FXint	compareSectionCase (const FXchar *p, const FXchar *q, FXint s)
Protected Attributes
FXHeader *	header
FXIconItemList	items
FXint	nrows
FXint	ncols
FXint	anchor
FXint	current
FXint	extent
FXint	viewable
FXFont *	font
FXIconListSortFunc	sortfunc
FXColor	textColor
FXColor	selbackColor
FXColor	seltextColor
FXint	itemSpace
FXint	itemWidth
FXint	itemHeight
FXint	anchorx
FXint	anchory
FXint	currentx
FXint	currenty
FXint	grabx
FXint	graby
FXString	lookup
FXString	help
FXbool	state

---

Detailed Description

A Icon List Widget displays a list of items, each with a text and optional icon.

Icon List can display its items in essentially three different ways; in big-icon mode, the bigger of the two icons is used for each item, and the text is placed underneath the icon. In mini- icon mode, the icons are listed in rows and columns, with the smaller icon preceding the text. Finally, in detail mode the icons are listed in a single column, and all fields of the text are shown under a header control with one button for each subfield. When an item's selected state changes, the icon list sends a SEL_SELECTED or SEL_DESELECTED message. A change of the current item is signified by the SEL_CHANGED message. The icon list sends SEL_COMMAND messages when the user clicks on an item, and SEL_CLICKED, SEL_DOUBLECLICKED, and SEL_TRIPLECLICKED when the user clicks once, twice, or thrice, respectively. When items are inserted or removed, the icon list sends messages of the type SEL_INSERTED or SEL_DELETED. In each of these cases, the index to the item, if any, is passed in the 3rd argument of the message. The text in each item is a string separated by tabs for each column; in mini- or big-icon mode, only the text before the first tab is shown. In detail-mode, the text before the first tab is shown in the first column, the text between the first and second tab is shown in the second column, and so on.

---

Member Function Documentation

FXint FX::FXIconList::findItem	(	const FXString &	text,
		FXint	start = -1,
		FXuint	flags = SEARCH_FORWARD|SEARCH_WRAP
	)		const

Search items by name, beginning from item start.

If the start item is -1 the search will start at the first item in the list. Flags may be SEARCH_FORWARD or SEARCH_BACKWARD to control the search direction; this can be combined with SEARCH_NOWRAP or SEARCH_WRAP to control whether the search wraps at the start or end of the list. The option SEARCH_IGNORECASE causes a case-insensitive match. Finally, passing SEARCH_PREFIX causes searching for a prefix of the item name. Return -1 if no matching item is found.

FXint FX::FXIconList::findItemByData	(	const void *	ptr,
		FXint	start = -1,
		FXuint	flags = SEARCH_FORWARD|SEARCH_WRAP
	)		const

Search items by associated user data, beginning from item start.

If the start item is -1 the search will start at the first item in the list. Flags may be SEARCH_FORWARD or SEARCH_BACKWARD to control the search direction; this can be combined with SEARCH_NOWRAP or SEARCH_WRAP to control whether the search wraps at the start or end of the list.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.32/include/FXIconList.h
