FX::FXFoldingList Class Reference

A Folding List Widget resembles a Tree list except that it supports a header control to provide each item with multiple columns of text. More...

#include <FXFoldingList.h>

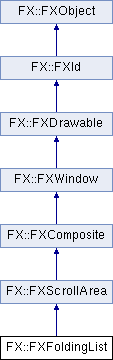

Inheritance diagram for FX::FXFoldingList:

List of all members.

Public Types
enum	{ ID_LOOKUPTIMER = FXScrollArea::ID_LAST, ID_HEADER, ID_LAST }
Public Member Functions
long	onPaint (FXObject *, FXSelector, void *)
long	onEnter (FXObject *, FXSelector, void *)
long	onLeave (FXObject *, FXSelector, void *)
long	onUngrabbed (FXObject *, FXSelector, void *)
long	onMotion (FXObject *, FXSelector, void *)
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onLeftBtnPress (FXObject *, FXSelector, void *)
long	onLeftBtnRelease (FXObject *, FXSelector, void *)
long	onRightBtnPress (FXObject *, FXSelector, void *)
long	onRightBtnRelease (FXObject *, FXSelector, void *)
long	onChgHeader (FXObject *, FXSelector, void *)
long	onQueryTip (FXObject *, FXSelector, void *)
long	onQueryHelp (FXObject *, FXSelector, void *)
long	onTipTimer (FXObject *, FXSelector, void *)
long	onFocusIn (FXObject *, FXSelector, void *)
long	onFocusOut (FXObject *, FXSelector, void *)
long	onAutoScroll (FXObject *, FXSelector, void *)
long	onClicked (FXObject *, FXSelector, void *)
long	onDoubleClicked (FXObject *, FXSelector, void *)
long	onTripleClicked (FXObject *, FXSelector, void *)
long	onCommand (FXObject *, FXSelector, void *)
long	onLookupTimer (FXObject *, FXSelector, void *)
	FXFoldingList (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=FOLDINGLIST_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Construct a folding list; the folding list is initially empty.
virtual void	create ()
	Create server-side resources.
virtual void	detach ()
	Detach server-side resources.
virtual void	layout ()
	Perform layout.
virtual FXint	getDefaultWidth ()
	Return default width.
virtual FXint	getDefaultHeight ()
	Return default height.
virtual FXint	getVisibleY () const
	Return visible scroll-area y position.
virtual FXint	getVisibleHeight () const
	Return visible scroll-area height.
virtual FXint	getContentWidth ()
	Compute and return content width.
virtual FXint	getContentHeight ()
	Return content height.
virtual void	recalc ()
	Recalculate layout.
virtual FXbool	canFocus () const
	Tree list can receive focus.
virtual void	setFocus ()
	Move the focus to this window.
virtual void	killFocus ()
	Remove the focus from this window.
FXHeader *	getHeader () const
	Return header control.
void	setHeaders (const FXchar **strings, FXint size=1)
	Set headers from array of strings.
void	setHeaders (const FXString &strings, FXint size=1)
	Set headers from newline separated strings.
void	appendHeader (const FXString &text, FXIcon *icon=NULL, FXint size=1)
	Append header with given text and optional icon.
void	removeHeader (FXint index)
	Remove header at index.
void	setHeaderText (FXint index, const FXString &text)
	Change text of header at index.
FXString	getHeaderText (FXint index) const
	Return text of header at index.
void	setHeaderIcon (FXint index, FXIcon *icon)
	Change icon of header at index.
FXIcon *	getHeaderIcon (FXint index) const
	Return icon of header at index.
void	setHeaderSize (FXint index, FXint size)
	Change size of header at index.
FXint	getHeaderSize (FXint index) const
	Return width of header at index.
FXint	getNumHeaders () const
	Return number of headers.
FXint	getNumItems () const
	Return number of items.
FXint	getNumVisible () const
	Return number of visible items.
void	setNumVisible (FXint nvis)
	Change number of visible items.
FXFoldingItem *	getFirstItem () const
	Return first root item.
FXFoldingItem *	getLastItem () const
	Return last root item.
FXint	fillItems (FXFoldingItem *father, const FXchar **strings, FXIcon *oi=NULL, FXIcon *ci=NULL, void *ptr=NULL, FXbool notify=false)
	Fill list by appending items from array of strings.
FXint	fillItems (FXFoldingItem *father, const FXString &strings, FXIcon *oi=NULL, FXIcon *ci=NULL, void *ptr=NULL, FXbool notify=false)
	Fill list by appending items from newline separated strings.
FXFoldingItem *	insertItem (FXFoldingItem *other, FXFoldingItem *father, FXFoldingItem *item, FXbool notify=false)
	Insert [possibly subclassed] item under father before other item.
FXFoldingItem *	insertItem (FXFoldingItem *other, FXFoldingItem *father, const FXString &text, FXIcon *oi=NULL, FXIcon *ci=NULL, void *ptr=NULL, FXbool notify=false)
	Insert item with given text and optional icons, and user-data pointer under father before other item.
FXFoldingItem *	appendItem (FXFoldingItem *father, FXFoldingItem *item, FXbool notify=false)
	Append [possibly subclassed] item as last child of father.
FXFoldingItem *	appendItem (FXFoldingItem *father, const FXString &text, FXIcon *oi=NULL, FXIcon *ci=NULL, void *ptr=NULL, FXbool notify=false)
	Append item with given text and optional icons, and user-data pointer as last child of father.
FXFoldingItem *	prependItem (FXFoldingItem *father, FXFoldingItem *item, FXbool notify=false)
	Prepend [possibly subclassed] item as first child of father.
FXFoldingItem *	prependItem (FXFoldingItem *father, const FXString &text, FXIcon *oi=NULL, FXIcon *ci=NULL, void *ptr=NULL, FXbool notify=false)
	Prepend item with given text and optional icons, and user-data pointer as first child of father.
FXFoldingItem *	moveItem (FXFoldingItem *other, FXFoldingItem *father, FXFoldingItem *item)
	Move item under father before other item.
FXFoldingItem *	extractItem (FXFoldingItem *item, FXbool notify=false)
	Extract item.
void	removeItem (FXFoldingItem *item, FXbool notify=false)
	Remove item.
void	removeItems (FXFoldingItem *fm, FXFoldingItem *to, FXbool notify=false)
	Remove items in range [fm, to] inclusively.
void	clearItems (FXbool notify=false)
	Remove all items from list.
FXint	getItemWidth (const FXFoldingItem *item) const
	Return item width.
FXint	getItemHeight (const FXFoldingItem *item) const
	Return item height.
virtual FXFoldingItem *	getItemAt (FXint x, FXint y) const
	Get item at x,y, if any.
FXFoldingItem *	findItem (const FXString &text, FXFoldingItem *start=NULL, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
	Search items by name, beginning from item start.
FXFoldingItem *	findItemByData (const void *ptr, FXFoldingItem *start=NULL, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
	Search items by associated user data, beginning from item start.
virtual void	makeItemVisible (FXFoldingItem *item)
	Scroll to make item visible.
void	setItemText (FXFoldingItem *item, const FXString &text)
	Change item's text.
FXString	getItemText (const FXFoldingItem *item) const
	Return item's text.
void	setItemOpenIcon (FXFoldingItem *item, FXIcon *icon, FXbool owned=false)
	Change item's open icon, deleting old icon if it was owned.
FXIcon *	getItemOpenIcon (const FXFoldingItem *item) const
	Return item's open icon.
void	setItemClosedIcon (FXFoldingItem *item, FXIcon *icon, FXbool owned=false)
	Chance item's closed icon, deleting old icon if it was owned.
FXIcon *	getItemClosedIcon (const FXFoldingItem *item) const
	Return item's closed icon.
void	setItemData (FXFoldingItem *item, void *ptr) const
	Change item user-data pointer.
void *	getItemData (const FXFoldingItem *item) const
	Return item user-data pointer.
FXbool	isItemSelected (const FXFoldingItem *item) const
	Return true if item is selected.
FXbool	isItemCurrent (const FXFoldingItem *item) const
	Return true if item is current.
FXbool	isItemVisible (const FXFoldingItem *item) const
	Return true if item is visible.
FXbool	isItemOpened (const FXFoldingItem *item) const
	Return true if item opened.
FXbool	isItemExpanded (const FXFoldingItem *item) const
	Return true if item expanded.
FXbool	isItemLeaf (const FXFoldingItem *item) const
	Return true if item is a leaf-item, i.e. has no children.
FXbool	isItemEnabled (const FXFoldingItem *item) const
	Return true if item is enabled.
FXint	hitItem (const FXFoldingItem *item, FXint x, FXint y) const
	Return item hit code: 0 outside, 1 icon, 2 text, 3 box.
void	updateItem (FXFoldingItem *item)
	Repaint item.
virtual FXbool	enableItem (FXFoldingItem *item)
	Enable item.
virtual FXbool	disableItem (FXFoldingItem *item)
	Disable item.
virtual FXbool	selectItem (FXFoldingItem *item, FXbool notify=false)
	Select item.
virtual FXbool	deselectItem (FXFoldingItem *item, FXbool notify=false)
	Deselect item.
virtual FXbool	toggleItem (FXFoldingItem *item, FXbool notify=false)
	Toggle item selection.
virtual FXbool	extendSelection (FXFoldingItem *item, FXbool notify=false)
	Extend selection from anchor item to item.
virtual FXbool	killSelection (FXbool notify=false)
	Deselect all items.
virtual FXbool	openItem (FXFoldingItem *item, FXbool notify=false)
	Open item.
virtual FXbool	closeItem (FXFoldingItem *item, FXbool notify=false)
	Close item.
virtual FXbool	collapseTree (FXFoldingItem *tree, FXbool notify=false)
	Collapse tree.
virtual FXbool	expandTree (FXFoldingItem *tree, FXbool notify=false)
	Expand tree.
virtual void	setCurrentItem (FXFoldingItem *item, FXbool notify=false)
	Change current item.
FXFoldingItem *	getCurrentItem () const
	Return current item, if any.
void	setAnchorItem (FXFoldingItem *item)
	Change anchor item.
FXFoldingItem *	getAnchorItem () const
	Return anchor item, if any.
void	sortItems ()
	Sort all items recursively.
void	sortRootItems ()
	Sort root items.
void	sortChildItems (FXFoldingItem *item)
	Sort children of item.
FXFoldingListSortFunc	getSortFunc () const
	Return sort function.
void	setSortFunc (FXFoldingListSortFunc func)
	Change sort function.
void	setFont (FXFont *fnt)
	Change text font.
FXFont *	getFont () const
	Return text font.
void	setIndent (FXint in)
	Change parent-child indent amount.
FXint	getIndent () const
	Return parent-child indent amount.
FXColor	getTextColor () const
	Return normal text color.
void	setTextColor (FXColor clr)
	Change normal text color.
FXColor	getSelBackColor () const
	Return selected text background.
void	setSelBackColor (FXColor clr)
	Change selected text background.
FXColor	getSelTextColor () const
	Return selected text color.
void	setSelTextColor (FXColor clr)
	Change selected text color.
FXColor	getLineColor () const
	Return line color.
void	setLineColor (FXColor clr)
	Change line color.
FXuint	getListStyle () const
	Return list style.
void	setListStyle (FXuint style)
	Change list style.
void	setHelpText (const FXString &text)
	Set the status line help text for this list.
const FXString &	getHelpText () const
	Get the status line help text for this list.
virtual void	save (FXStream &store) const
	Save object to a stream.
virtual void	load (FXStream &store)
	Load object from a stream.
virtual	~FXFoldingList ()
	Destructor.
Static Public Member Functions
static FXint	ascending (const FXFoldingItem *, const FXFoldingItem *)
static FXint	descending (const FXFoldingItem *, const FXFoldingItem *)
static FXint	ascendingCase (const FXFoldingItem *, const FXFoldingItem *)
static FXint	descendingCase (const FXFoldingItem *, const FXFoldingItem *)
Protected Member Functions
void	recompute ()
void	mergesort (FXFoldingItem *&list)
void	sort (FXFoldingItem *&f1, FXFoldingItem *&t1, FXFoldingItem *&f2, FXFoldingItem *&t2, int n)
virtual void	moveContents (FXint x, FXint y)
virtual FXFoldingItem *	createItem (const FXString &text, FXIcon *oi, FXIcon *ci, void *ptr)
Static Protected Member Functions
static FXint	compareSection (const FXchar *p, const FXchar *q, FXint s)
static FXint	compareSectionCase (const FXchar *p, const FXchar *q, FXint s)
Protected Attributes
FXHeader *	header
FXFoldingItem *	firstitem
FXFoldingItem *	lastitem
FXFoldingItem *	anchoritem
FXFoldingItem *	currentitem
FXFoldingItem *	extentitem
FXFoldingItem *	viewableitem
FXFont *	font
FXFoldingListSortFunc	sortfunc
FXColor	textColor
FXColor	selbackColor
FXColor	seltextColor
FXColor	lineColor
FXint	treeWidth
FXint	treeHeight
FXint	visible
FXint	indent
FXint	grabx
FXint	graby
FXString	lookup
FXString	help
FXbool	state

---

Detailed Description

A Folding List Widget resembles a Tree list except that it supports a header control to provide each item with multiple columns of text.

Subtrees can be collapsed or expanded by double-clicking on an item or by clicking on the optional plus button in front of the item. Each item may have a text and optional open-icon as well as a closed-icon. The items may be connected by optional lines to show the hierarchical relationship. When an item's selected state changes, the folding list emits a SEL_SELECTED or SEL_DESELECTED message. If an item is opened or closed, a message of type SEL_OPENED or SEL_CLOSED is sent. When the subtree under an item is expanded, a SEL_EXPANDED or SEL_COLLAPSED message is issued. A change of the current item is signified by the SEL_CHANGED message. In addition, the folding list sends SEL_COMMAND messages when the user clicks on an item, and SEL_CLICKED, SEL_DOUBLECLICKED, and SEL_TRIPLECLICKED when the user clicks once, twice, or thrice, respectively. When items are added or removed, the folding list sends messages of the type SEL_INSERTED or SEL_DELETED. In each of these cases, a pointer to the item, if any, is passed in the 3rd argument of the message. The text in each item is a string separated by tabs for each column; in mini- or big-icon mode, only the text before the first tab is shown. In detail-mode, the text before the first tab is shown in the first column, the text between the first and second tab is shown in the second column, and so on.

---

Member Function Documentation

FXFoldingItem* FX::FXFoldingList::findItem	(	const FXString &	text,
		FXFoldingItem *	start = NULL,
		FXuint	flags = SEARCH_FORWARD|SEARCH_WRAP
	)		const

Search items by name, beginning from item start.

If the start item is NULL the search will start at the first, top-most item in the list. Flags may be SEARCH_FORWARD or SEARCH_BACKWARD to control the search direction; this can be combined with SEARCH_NOWRAP or SEARCH_WRAP to control whether the search wraps at the start or end of the list. The option SEARCH_IGNORECASE causes a case-insensitive match. Finally, passing SEARCH_PREFIX causes searching for a prefix of the item name. Return NULL if no matching item is found.

FXFoldingItem* FX::FXFoldingList::findItemByData	(	const void *	ptr,
		FXFoldingItem *	start = NULL,
		FXuint	flags = SEARCH_FORWARD|SEARCH_WRAP
	)		const

Search items by associated user data, beginning from item start.

If the start item is NULL the search will start at the first, top-most item in the list. Flags may be SEARCH_FORWARD or SEARCH_BACKWARD to control the search direction; this can be combined with SEARCH_NOWRAP or SEARCH_WRAP to control whether the search wraps at the start or end of the list.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.32/include/FXFoldingList.h
