FX::FXColorDialog Class Reference

The Color dialog is a standard dialog panel used to edit colors. More...

#include <FXColorDialog.h>

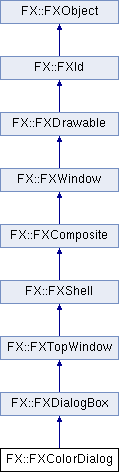

Inheritance diagram for FX::FXColorDialog:

List of all members.

Public Types
enum	{ ID_COLORSELECTOR = FXDialogBox::ID_LAST, ID_LAST }
Public Member Functions
long	onChgColor (FXObject *, FXSelector, void *)
long	onCmdColor (FXObject *, FXSelector, void *)
long	onCmdSetIntValue (FXObject *, FXSelector, void *)
long	onCmdGetIntValue (FXObject *, FXSelector, void *)
	FXColorDialog (FXWindow *owner, const FXString &name, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Construct color dialog.
	FXColorDialog (FXApp *a, const FXString &name, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Construct free-floating color dialog box.
virtual void	create ()
	Create server-side resources.
virtual void	destroy ()
	Destroy server-side resources.
void	setRGBA (FXColor clr)
	Set the color.
FXColor	getRGBA () const
	Get the color.
void	setActivePanel (FXint pnl=COLORTAB_COLOR_RING)
	Change active panel.
FXint	getActivePanel () const
	Return active panel.
void	setWellColor (FXint w, FXColor clr)
	Change well color.
FXColor	getWellColor (FXint w) const
	Return well color.
void	setOpaqueOnly (FXbool forceopaque)
	Change opaque only mode.
FXbool	isOpaqueOnly () const
	Return true if only opaque colors allowed.
virtual void	save (FXStream &store) const
	Save dialog to a stream.
virtual void	load (FXStream &store)
	Load dialog from a stream.
virtual	~FXColorDialog ()
	Destructor.
Protected Attributes
FXColorSelector *	colorbox

---

Detailed Description

The Color dialog is a standard dialog panel used to edit colors.

Colors can be edited via RGB (Red, Green, Blue additive color model), via HSV (Hue, Saturation, Value color modal), via CMY (Cyan, Magenta, Yellow subtractive color model), or by name. Commonly used colors can be dragged into a number of small color wells to be used repeatedly; colors dropped into the small color wells are automatically saved into the registry for future use.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.32/include/FXColorDialog.h
