FX::FXTopWindow Class Reference

Abstract base class for all top-level windows. More...

#include <FXTopWindow.h>

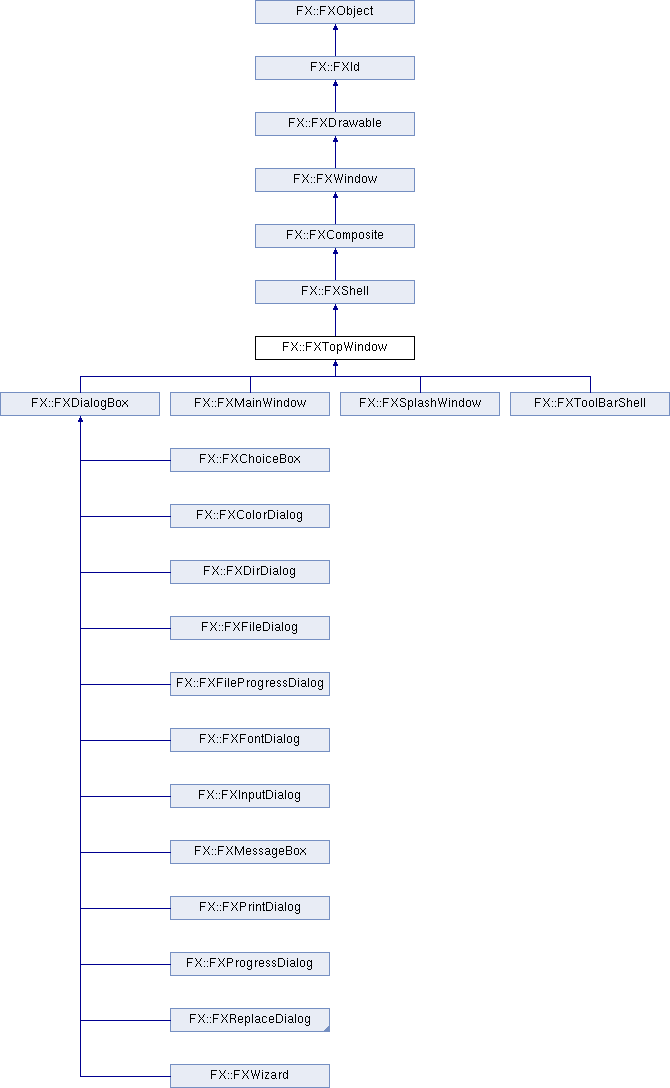

Inheritance diagram for FX::FXTopWindow:

List of all members.

Public Types
enum	{   ID_RESTORE = FXShell::ID_LAST, ID_MAXIMIZE, ID_MINIMIZE, ID_FULLSCREEN,   ID_CLOSE, ID_QUERY_DOCK, ID_LAST }
Public Member Functions
long	onFocusUp (FXObject *, FXSelector, void *)
long	onFocusDown (FXObject *, FXSelector, void *)
long	onFocusLeft (FXObject *, FXSelector, void *)
long	onFocusRight (FXObject *, FXSelector, void *)
long	onSessionNotify (FXObject *, FXSelector, void *)
long	onSessionClosed (FXObject *, FXSelector, void *)
long	onRestore (FXObject *, FXSelector, void *)
long	onMaximize (FXObject *, FXSelector, void *)
long	onMinimize (FXObject *, FXSelector, void *)
long	onCmdRestore (FXObject *, FXSelector, void *)
long	onCmdMaximize (FXObject *, FXSelector, void *)
long	onCmdMinimize (FXObject *, FXSelector, void *)
long	onCmdFullScreen (FXObject *, FXSelector, void *)
long	onCmdClose (FXObject *, FXSelector, void *)
long	onCmdSetStringValue (FXObject *, FXSelector, void *)
long	onCmdGetStringValue (FXObject *, FXSelector, void *)
long	onCmdSetIconValue (FXObject *, FXSelector, void *)
long	onCmdGetIconValue (FXObject *, FXSelector, void *)
virtual void	create ()
	Create server-side resources.
virtual void	detach ()
	Detach the server-side resources for this window.
virtual void	destroy ()
	Destroy the server-side resources for this window.
virtual void	layout ()
	Perform layout.
virtual void	setFocus ()
	Move the focus to this window.
virtual void	killFocus ()
	Remove the focus from this window.
virtual void	show ()
	Show this window.
virtual void	hide ()
	Hide this window.
virtual void	show (FXuint placement)
	Show this window with given placement.
void	place (FXuint placement)
	Position the window based on placement.
virtual FXint	getDefaultWidth ()
	Return the default width of this window.
virtual FXint	getDefaultHeight ()
	Return the default height of this window.
FXbool	getWMBorders (FXint &left, FXint &right, FXint &top, FXint &bottom)
	Obtain border sizes added to our window by the window manager.
virtual void	raise ()
	Raise this window to the top of the stacking order.
virtual void	lower ()
	Lower this window to the bottom of the stacking order.
virtual void	move (FXint x, FXint y)
	Move this window to the specified position in the parent's coordinates.
virtual void	resize (FXint w, FXint h)
	Resize this window to the specified width and height.
virtual void	position (FXint x, FXint y, FXint w, FXint h)
	Move and resize this window in the parent's coordinates.
virtual void	flash (FXbool yes)
	Flash the window to get user's attention.
virtual FXbool	restore (FXbool notify=false)
	Restore window to normal, return true if restored.
virtual FXbool	maximize (FXbool notify=false)
	Maximize window, return true if maximized.
virtual FXbool	minimize (FXbool notify=false)
	Minimize or iconify window, return true if minimized.
virtual FXbool	fullScreen (FXbool notify=false)
	Make window full screen, return true if success.
virtual FXbool	stackingOrder (FXuint order)
	Special stacking order level.
virtual FXbool	close (FXbool notify=false)
	Close the window, return true if actually closed.
FXbool	isMaximized () const
	Return true if maximized.
FXbool	isMinimized () const
	Return true if minimized.
FXbool	isFullScreen () const
	Return true if full screen.
void	setTitle (const FXString &name)
	Change window title.
FXString	getTitle () const
	Return window title.
void	setPadTop (FXint pt)
	Change top padding.
FXint	getPadTop () const
	Get top interior padding.
void	setPadBottom (FXint pb)
	Change bottom padding.
FXint	getPadBottom () const
	Get bottom interior padding.
void	setPadLeft (FXint pl)
	Change left padding.
FXint	getPadLeft () const
	Get left interior padding.
void	setPadRight (FXint pr)
	Change right padding.
FXint	getPadRight () const
	Get right interior padding.
FXint	getHSpacing () const
	Return horizontal spacing between children.
FXint	getVSpacing () const
	Return vertical spacing between children.
void	setHSpacing (FXint hs)
	Change horizontal spacing between children.
void	setVSpacing (FXint vs)
	Change vertical spacing between children.
void	setPackingHints (FXuint ph)
	Change packing hints for children.
FXuint	getPackingHints () const
	Return packing hints for children.
void	setDecorations (FXuint decorations)
	Change title and border decorations.
FXuint	getDecorations () const
	Return current title and border decorations.
FXIcon *	getIcon () const
	Return window icon.
void	setIcon (FXIcon *ic)
	Change window icon.
FXIcon *	getMiniIcon () const
	Return window mini (title) icon.
void	setMiniIcon (FXIcon *ic)
	Change window mini (title) icon.
virtual void	save (FXStream &store) const
	Save to stream.
virtual void	load (FXStream &store)
	Load from stream.
virtual	~FXTopWindow ()
	Destructor.
Protected Member Functions
void	settitle ()
void	seticons ()
void	setdecorations ()
	FXTopWindow (FXApp *ap, const FXString &name, FXIcon *ic, FXIcon *mi, FXuint opts, FXint x, FXint y, FXint w, FXint h, FXint pl, FXint pr, FXint pt, FXint pb, FXint hs, FXint vs)
	FXTopWindow (FXWindow *ow, const FXString &name, FXIcon *ic, FXIcon *mi, FXuint opts, FXint x, FXint y, FXint w, FXint h, FXint pl, FXint pr, FXint pt, FXint pb, FXint hs, FXint vs)
Protected Attributes
FXString	title
FXIcon *	icon
FXIcon *	miniIcon
FXint	padtop
FXint	padbottom
FXint	padleft
FXint	padright
FXint	hspacing
FXint	vspacing

---

Detailed Description

Abstract base class for all top-level windows.

TopWindows are usually managed by a Window Manager under X11 and therefore borders and window-menus and other decorations like resize- handles are subject to the Window Manager's interpretation of the decoration hints. When a TopWindow is closed, it sends a SEL_CLOSE message to its target. The target should return 0 in response to this message if there is no objection to proceed with the closing of the window, and return 1 otherwise. After the SEL_CLOSE message has been sent and no objection was raised, the window will delete itself. When the session is closed, the window will send a SEL_SESSION_NOTIFY message to its target, allowing the application to write any unsaved data to the disk. If the target returns 0, then the system will proceed to close the session. Subsequently a SEL_SESSION_CLOSED will be received which causes the window to be closed with prejudice by calling the function close(false). When receiving a SEL_UPDATE, the target can update the title string of the window, so that the title of the window reflects the name of the document, for example. For convenience, TopWindow provides the same layout behavior as the Packer widget, as well as docking and undocking of toolbars. TopWindows can be owned by other windows, or be free-floating. Owned TopWindows will usually remain stacked on top of the owner windows. The lifetime of an owned window should not exceed that of the owner.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

ID_MAXIMIZE	Restore the window.
ID_MINIMIZE	Maximize the window.
ID_FULLSCREEN	Minimize the window.
ID_CLOSE	Make the window full screen.
ID_QUERY_DOCK	Close the window.
ID_LAST	Toolbar asks to dock.

---

Member Function Documentation

virtual FXbool FX::FXTopWindow::close

(

FXbool

notify = false

)

[virtual]

Close the window, return true if actually closed.

If notify=true, the target will receive a SEL_CLOSE message to determine if it is OK to close the window. If the target ignores the SEL_CLOSE message or returns 0, the window will be closed, and subsequently deleted. When the last main window has been closed, the application will receive an ID_QUIT message and will be closed.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.32/include/FXTopWindow.h
