FX::FXTabBar Class Reference

The tab bar layout manager arranges tab items side by side, and raises the active tab item above the neighboring tab items. More...

#include <FXTabBar.h>

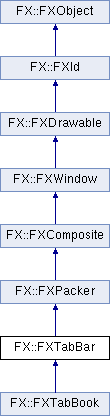

Inheritance diagram for FX::FXTabBar:

List of all members.

Public Types
enum	{   ID_OPEN_ITEM = FXPacker::ID_LAST, ID_OPEN_FIRST, ID_OPEN_SECOND, ID_OPEN_THIRD,   ID_OPEN_FOURTH, ID_OPEN_FIFTH, ID_OPEN_SIXTH, ID_OPEN_SEVENTH,   ID_OPEN_EIGHTH, ID_OPEN_NINETH, ID_OPEN_TENTH, ID_OPEN_LAST = ID_OPEN_FIRST+100,   ID_LAST }
Public Member Functions
long	onPaint (FXObject *, FXSelector, void *)
long	onFocusNext (FXObject *, FXSelector, void *)
long	onFocusPrev (FXObject *, FXSelector, void *)
long	onFocusUp (FXObject *, FXSelector, void *)
long	onFocusDown (FXObject *, FXSelector, void *)
long	onFocusLeft (FXObject *, FXSelector, void *)
long	onFocusRight (FXObject *, FXSelector, void *)
long	onCmdOpenItem (FXObject *, FXSelector, void *)
long	onCmdSetValue (FXObject *, FXSelector, void *)
long	onCmdSetIntValue (FXObject *, FXSelector, void *)
long	onCmdGetIntValue (FXObject *, FXSelector, void *)
long	onCmdOpen (FXObject *, FXSelector, void *)
long	onUpdOpen (FXObject *, FXSelector, void *)
	FXTabBar (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=TABBOOK_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_SPACING, FXint pr=DEFAULT_SPACING, FXint pt=DEFAULT_SPACING, FXint pb=DEFAULT_SPACING)
	Construct a tab bar.
virtual FXint	getDefaultWidth ()
	Return default width.
virtual FXint	getDefaultHeight ()
	Return default height.
virtual void	layout ()
	Perform layout.
virtual void	setCurrent (FXint panel, FXbool notify=false)
	Change currently active tab item; this raises the active tab item slightly above the neighboring tab items.
FXint	getCurrent () const
	Return the currently active tab item.
FXuint	getTabStyle () const
	Return tab bar style.
void	setTabStyle (FXuint style)
	Change tab tab style.
virtual void	save (FXStream &store) const
	Save to stream.
virtual void	load (FXStream &store)
	Load from stream.
Protected Attributes
FXint	current
FXint	shift

---

Detailed Description

The tab bar layout manager arranges tab items side by side, and raises the active tab item above the neighboring tab items.

In a the horizontal arrangement, the tab bar can have the tab items on the top or on the bottom. In the vertical arrangement, the tabs can be on the left or on the right. When one of the tab items is pressed, the tab bar's setCurrent() is called with notify=true. Thus causes the tab bar to send a SEL_COMMAND message to its target, with the currently active tab index in the void pointer.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

ID_OPEN_FIRST	Sent from one of the FXTabItems.
ID_OPEN_SECOND	Switch to panel ID_OPEN_FIRST+i.

---

Member Function Documentation

virtual void FX::FXTabBar::setCurrent	(	FXint	panel,
		FXbool	notify = false
	)		[virtual]

Change currently active tab item; this raises the active tab item slightly above the neighboring tab items.

If notify=true then the tab bar will also send a SEL_COMMAND message to its target, containing the currently active tab index in the void pointer.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.33/include/FXTabBar.h
