FX::FXSwitcher Class Reference

The Switcher layout manager automatically arranges its child windows such that one of them is placed on top; all other child windows are hidden. More...

#include <FXSwitcher.h>

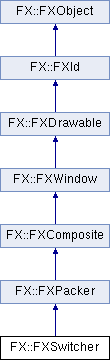

Inheritance diagram for FX::FXSwitcher:

List of all members.

Public Types
enum	{   ID_OPEN_FIRST = FXPacker::ID_LAST, ID_OPEN_SECOND, ID_OPEN_THIRD, ID_OPEN_FOURTH,   ID_OPEN_FIFTH, ID_OPEN_SIXTH, ID_OPEN_SEVENTH, ID_OPEN_EIGHTH,   ID_OPEN_NINETH, ID_OPEN_TENTH, ID_OPEN_LAST = ID_OPEN_FIRST+100, ID_LAST }
Public Member Functions
long	onPaint (FXObject *, FXSelector, void *)
long	onCmdSetValue (FXObject *, FXSelector, void *)
long	onCmdSetIntValue (FXObject *, FXSelector, void *)
long	onCmdGetIntValue (FXObject *, FXSelector, void *)
long	onCmdOpen (FXObject *, FXSelector, void *)
long	onUpdOpen (FXObject *, FXSelector, void *)
	FXSwitcher (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_SPACING, FXint pr=DEFAULT_SPACING, FXint pt=DEFAULT_SPACING, FXint pb=DEFAULT_SPACING)
	Construct a switcher layout manager.
virtual FXint	getDefaultWidth ()
	Return default width.
virtual FXint	getDefaultHeight ()
	Return default height.
virtual void	layout ()
	Perform layout.
void	setCurrent (FXint index, FXbool notify=false)
	Bring the child window at index to the top.
FXint	getCurrent () const
	Return the index of the child window currently on top.
void	setSwitcherStyle (FXuint style)
	Set the switcher style flags.
FXuint	getSwitcherStyle () const
	Get the switcher style flags.
virtual void	save (FXStream &store) const
	Save to stream.
virtual void	load (FXStream &store)
	Load from stream.
Protected Attributes
FXint	current

---

Detailed Description

The Switcher layout manager automatically arranges its child windows such that one of them is placed on top; all other child windows are hidden.

Switcher provides a convenient method to conserve screen real-estate by arranging several GUI panels to appear in the same space, depending on context. Switcher ignores all layout hints from its children:- all children are stretched according to the switcher layout managers own size. When the SWITCHER_HCOLLAPSE or SWITCHER_VCOLLAPSE options are used, Switcher's default size is based on the width or height of the current child, instead of the maximum width or height of all of the children.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.33/include/FXSwitcher.h
