FX::FXSpring Class Reference

The spring widgets, when properly embedded side by side in a horizontal frame or vertical frame widget, behave like a set of connected springs of various lengths (hence the name!). More...

#include <FXSpring.h>

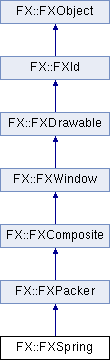

Inheritance diagram for FX::FXSpring:

List of all members.

Public Member Functions
	FXSpring (FXComposite *p, FXuint opts=0, FXint relw=0, FXint relh=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_SPACING, FXint pr=DEFAULT_SPACING, FXint pt=DEFAULT_SPACING, FXint pb=DEFAULT_SPACING, FXint hs=DEFAULT_SPACING, FXint vs=DEFAULT_SPACING)
	Construct packer layout manager.
virtual FXint	getDefaultWidth ()
	Return default width.
virtual FXint	getDefaultHeight ()
	Return default height.
void	setRelativeWidth (FXint relw)
	Change relative width.
FXint	getRelativeWidth () const
	Return relative width.
void	setRelativeHeight (FXint relh)
	Change relative height.
FXint	getRelativeHeight () const
	Return relative height.
virtual void	save (FXStream &store) const
	Save to stream.
virtual void	load (FXStream &store)
	Load from stream.
Protected Attributes
FXint	relWidth
FXint	relHeight

---

Detailed Description

The spring widgets, when properly embedded side by side in a horizontal frame or vertical frame widget, behave like a set of connected springs of various lengths (hence the name!).

The parameters relw (or relh) determines the length of the spring. The actual length is not really important; the only thing that counts is the relative length of one spring widget to that of another, although the length does determine the default size. The special value zero may be given for relw (or relh) to cause the spring to calculate its default width (height) normally, just like the Packer base class does. In a typical scenario, either the relative width or height is set to zero, and the flag LAYOUT_FILL_X or LAYOUT_FILL_Y is passed. When placed inside a horizontal frame, the LAYOUT_FILL_X together with the relative widths of the springs will cause a fixed width-ratio between the springs. You also can mix normal controls and springs together in a horizontal or vertical frames to provide arbitrary stretchable spacing between widgets; in this case, the springs do not need to have any children. Since the spring widget is derived from the packer layout manager, it provides the same layout behavior as packer.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.33/include/FXSpring.h
