The menu radio widget is used to invoke a command in the application from a menu. More...

#include <FXMenuRadio.h>

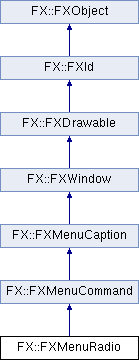

Inheritance diagram for FX::FXMenuRadio:

Public Member Functions
long	onPaint (FXObject , FXSelector, void )
long	onButtonPress (FXObject , FXSelector, void )
long	onButtonRelease (FXObject , FXSelector, void )
long	onKeyPress (FXObject , FXSelector, void )
long	onKeyRelease (FXObject , FXSelector, void )
long	onHotKeyPress (FXObject , FXSelector, void )
long	onHotKeyRelease (FXObject , FXSelector, void )
long	onCheck (FXObject , FXSelector, void )
long	onUncheck (FXObject , FXSelector, void )
long	onUnknown (FXObject , FXSelector, void )
long	onCmdSetValue (FXObject , FXSelector, void )
long	onCmdSetIntValue (FXObject , FXSelector, void )
long	onCmdGetIntValue (FXObject , FXSelector, void )
long	onCmdAccel (FXObject , FXSelector, void )
	FXMenuRadio (FXComposite p, const FXString &text, FXObject tgt=NULL, FXSelector sel=0, FXuint opts=0)
	Construct a menu radio.
virtual FXint	getDefaultWidth ()
	Return default width.
virtual FXint	getDefaultHeight ()
	Return default height.
void	setCheck (FXuchar s=TRUE)
	Set radio button state (TRUE, FALSE or MAYBE)
FXuchar	getCheck () const
	Get radio button state (TRUE, FALSE or MAYBE)
FXColor	getRadioColor () const
	Get the radio background color.
void	setRadioColor (FXColor clr)
	Set the radio background color.
virtual void	save (FXStream &store) const
	Save menu to a stream.
virtual void	load (FXStream &store)
	Load menu from a stream.
Protected Attributes
FXColor	radioColor
FXuchar	check

Detailed Description

The menu radio widget is used to invoke a command in the application from a menu.

Menu commands may reflect the state of the application by graying out, becoming hidden, or by a bullit. When activated, a menu radio sends a SEL_COMMAND to its target; the void* argument of the message contains the new state. A collection of menu radio widgets which belong to each other is supposed to be updated by a common SEL_UPDATE handler to properly maintain the state between them.

The documentation for this class was generated from the following file:

/home/jeroen/FOX/fox/fox-1.7.32/include/FXMenuRadio.h
