FX::FXGIFIcon Class Reference

GIF Icon class. More...

#include <FXGIFIcon.h>

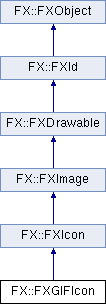

Inheritance diagram for FX::FXGIFIcon:
FX::FXIcon FX::FXImage FX::FXDrawable FX::FXId FX::FXObject

Public Member Functions

 FXGIFIcon (FXApp *a, const FXuchar *pix=nullptr, FXColor clr=FXRGB(192, 192, 192), FXuint opts=0, FXint w=1, FXint h=1)
 Construct an icon from memory stream formatted as GIF format.

virtual FXbool savePixels (FXStream &store) const
 Save pixels into stream in GIF format.

virtual FXbool loadPixels (FXStream &store)
 Load pixels from stream in GIF format.

virtual ~FXGIFIcon ()
 Destroy.

- Public Member Functions inherited from FX::FXIcon
 FXIcon (FXApp *a, const FXColor *pix=nullptr, FXColor clr=0, FXuint opts=0, FXint w=1, FXint h=1)
 Create an icon with an initial pixel buffer pix, a transparent color clr, and options as in FXImage. More...

virtual void create ()
 Create the server side pixmap, the shape bitmap, and the etch bitmap, then call render() to fill it with the pixel data from the client-side buffer. More...

virtual void detach ()
 Detach the server side pixmap, shape bitmap, and etch bitmap from the Icon. More...

virtual void destroy ()
 Destroy the server-side pixmap and the shape bitmap and etch bitmap. More...

virtual void render ()
 Render the server-side pixmap, shape bitmap and etch bitmap for the icon from the client-side pixel buffer.

virtual void resize (FXint w, FXint h)
 Resize both client-side and server-side representations (if any) to the given width and height. More...

FXColor getTransparentColor () const
 Get transparency color.

void setTransparentColor (FXColor color)
 Change transparency color.

FXshort getThresholdValue () const
 Get threshold value.

void setThresholdValue (FXshort value)
 Change threshold value.

virtual ~FXIcon ()
 Destructor.

- Public Member Functions inherited from FX::FXImage
 FXImage (FXApp *a, const FXColor *pix=nullptr, FXuint opts=0, FXint w=1, FXint h=1)
 Create an image. More...

void setOptions (FXuint opts)
 Change options.

FXuint getOptions () const
 To get to the option flags.

void setOwned (FXbool owned)
 Set pixel data ownership flag.

FXbool isOwned () const
 Get pixel data ownership flag.

virtual void setData (FXColor *pix, FXuint opts=0)
 Populate the image with new pixel data of the same size; it will assume ownership of the pixel data if image IMAGE_OWNED option is passed. More...

virtual void setData (FXColor *pix, FXuint opts, FXint w, FXint h)
 Populate the image with new pixel data of a new size; it will assume ownership of the pixel data if image IMAGE_OWNED option is passed. More...

FXColor * getData () const
 Return pointer to the pixel data of the image.

FXColor getPixel (FXint x, FXint y) const
 Get pixel at x,y.

void setPixel (FXint x, FXint y, FXColor color)
 Change pixel at x,y.

FXbool hasAlpha () const
 Scan the image and return false if fully opaque.

virtual void restore ()
 Retrieves pixels from the server-side image. More...

virtual void release ()
 Release the client-side pixels buffer, free it if it was owned. More...

virtual void scale (FXint w, FXint h, FXint quality=0)
 Rescale pixels image to the specified width and height; this calls resize() to adjust the client and server side representations.

virtual void mirror (FXbool horizontal, FXbool vertical)
 Mirror image horizontally and/or vertically.

virtual void rotate (FXint degrees)
 Rotate image by degrees ccw; this calls resize() to adjust the client and server side representations if necessary.

virtual void crop (FXint x, FXint y, FXint w, FXint h, FXColor color=0)
 Crop image to given rectangle; this calls resize() to adjust the client and server side representations. More...

virtual void fill (FXColor color)
 Fill image with uniform color.

virtual void fade (FXColor color, FXint factor=255)
 Fade image to uniform color.

virtual void xshear (FXint shear, FXColor clr=0)
 Shear image horizontally; the number of pixels is equal to the shear parameter times 256. More...

virtual void yshear (FXint shear, FXColor clr=0)
 Shear image vertically; the number of pixels is equal to the shear parameter times 256. More...

virtual void hgradient (FXColor left, FXColor right)
 Fill horizontal gradient.

virtual void vgradient (FXColor top, FXColor bottom)
 Fill vertical gradient.

virtual void gradient (FXColor topleft, FXColor topright, FXColor bottomleft, FXColor bottomright)
 Fill with gradient.

virtual void blend (FXColor color)
 Blend image over uniform color.

virtual void invert ()
 Invert colors of an image.

virtual void colorize (FXColor color)
 Colorize image based on luminance.

virtual void save (FXStream &store) const
 Save object to stream.

virtual void load (FXStream &store)
 Load object from stream.

virtual ~FXImage ()
 Destructor.

- Public Member Functions inherited from FX::FXDrawable
FXVisualgetVisual () const
 Get the visual.

FXint getWidth () const
 Width of drawable.

FXint getHeight () const
 Height of drawable.

void setVisual (FXVisual *vis)
 Change visual.

virtual ~FXDrawable ()
 Cleanup.

- Public Member Functions inherited from FX::FXId
FXAppgetApp () const
 Get application.

FXID id () const
 Get XID handle.

void setUserData (FXptr ptr)
 Set user data pointer.

FXptr getUserData () const
 Get user data pointer.

virtual ~FXId ()
 Destructor.

- Public Member Functions inherited from FX::FXObject
const FXchar * getClassName () const
 Get class name of some object.

FXbool isMemberOf (const FXMetaClass *metaclass) const
 Check if object is member of metaclass.

virtual long tryHandle (FXObject *sender, FXSelector sel, void *ptr)
 Try handle message safely, catching certain exceptions.

virtual long onDefault (FXObject *, FXSelector, void *)
 Called for unhandled messages.

virtual ~FXObject ()
 Virtual destructor.


Static Public Attributes

static const FXchar fileExt []

static const FXchar mimeType []


Additional Inherited Members

- Protected Member Functions inherited from FX::FXIcon
FXColor guesstransp () const

FXshort guessthresh () const

- Protected Member Functions inherited from FX::FXDrawable
 FXDrawable (FXApp *a, FXint w, FXint h)

- Protected Member Functions inherited from FX::FXId
 FXId (FXApp *a)

- Protected Attributes inherited from FX::FXIcon
FXID shape

FXID etch

FXColor transp

FXshort thresh

- Protected Attributes inherited from FX::FXImage
FXColor * data

FXuint options

- Protected Attributes inherited from FX::FXDrawable
FXVisualvisual

FXint width

FXint height

- Protected Attributes inherited from FX::FXId
FXID xid


Detailed Description

GIF Icon class.


The documentation for this class was generated from the following file:
