A dock bar widget can be docked inside a dock site widget, or floated around freely. More...

#include <FXDockBar.h>

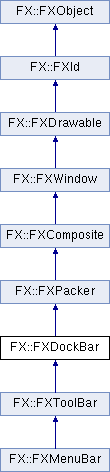

Inheritance diagram for FX::FXDockBar:

Public Types
enum	{ ID_DOCK_FLOAT = FXPacker::ID_LAST, ID_DOCK_TOP, ID_DOCK_BOTTOM, ID_DOCK_LEFT, ID_DOCK_RIGHT, ID_DOCK_FLIP, ID_TOOLBARGRIP, ID_TIMER, ID_LAST }
enum	{ ALLOW_NOWHERE = 0, ALLOW_TOP = 1, ALLOW_BOTTOM = 2, ALLOW_LEFT = 4, ALLOW_RIGHT = 8, ALLOW_HORIZONTAL = ALLOW_TOP\|ALLOW_BOTTOM, ALLOW_VERTICAL = ALLOW_LEFT\|ALLOW_RIGHT, ALLOW_EVERYWHERE = ALLOW_HORIZONTAL\|ALLOW_VERTICAL }
Public Member Functions
long	onCmdUndock (FXObject , FXSelector, void )
long	onUpdUndock (FXObject , FXSelector, void )
long	onCmdDockTop (FXObject , FXSelector, void )
long	onUpdDockTop (FXObject , FXSelector, void )
long	onCmdDockBottom (FXObject , FXSelector, void )
long	onUpdDockBottom (FXObject , FXSelector, void )
long	onCmdDockLeft (FXObject , FXSelector, void )
long	onUpdDockLeft (FXObject , FXSelector, void )
long	onCmdDockRight (FXObject , FXSelector, void )
long	onUpdDockRight (FXObject , FXSelector, void )
long	onUpdDockFlip (FXObject , FXSelector, void )
long	onBeginDragGrip (FXObject , FXSelector, void )
long	onEndDragGrip (FXObject , FXSelector, void )
long	onDraggedGrip (FXObject , FXSelector, void )
long	onPopupMenu (FXObject , FXSelector, void )
long	onDockTimer (FXObject , FXSelector, void )
	FXDockBar (FXComposite p, FXComposite q, FXuint opts=LAYOUT_TOP\|LAYOUT_LEFT\|LAYOUT_FILL_X, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=3, FXint pr=3, FXint pt=2, FXint pb=2, FXint hs=DEFAULT_SPACING, FXint vs=DEFAULT_SPACING)
	Construct a floatable dock bar, with a default parent p and an alternate parent q.
	FXDockBar (FXComposite *p, FXuint opts, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=2, FXint pr=3, FXint pt=3, FXint pb=2, FXint hs=DEFAULT_SPACING, FXint vs=DEFAULT_SPACING)
	Construct a non-floatable dock bar.
FXbool	isDocked () const
	Return true if docked.
FXbool	insideDock (FXDockSite *docksite, FXint barx, FXint bary)
	Check if the dock bar would dock or undock if at locaton barx, bary.
void	setDryDock (FXComposite *dry)
	Set parent when docked.
void	setWetDock (FXComposite *wet)
	Set parent when floating.
FXComposite *	getDryDock () const
	Return parent when docked.
FXComposite *	getWetDock () const
	Return parent when floating.
FXDockSite *	findDockAtSide (FXuint side=LAYOUT_SIDE_TOP)
	Search for dock against given side of main window.
FXDockSite *	findDockNear (FXint rootx, FXint rooty)
	Search for dock close to coordinates rootx, rooty.
virtual void	dock (FXDockSite docksite, FXWindow other=NULL, FXbool notify=false)
	Dock the bar against the given side, after some other widget.
virtual void	dock (FXDockSite *docksite, FXint localx, FXint localy, FXbool notify)
	Dock the bar against the given side, near the given position relative to the toolbar dock's origin.
virtual void	undock (FXint rootx, FXint rooty, FXbool notify=false)
	Undock or float the bar.
void	allowedSides (FXuchar allow)
	Change set of sides (a combination of ALLOW_TOP, ALLOW_LEFT, etc.), where docking is allowed.
FXuchar	allowedSides () const
	Return set of sides where docking is allowed.
virtual void	save (FXStream &store) const
	Save toolbar to a stream.
virtual void	load (FXStream &store)
	Load toolbar from a stream.
virtual	~FXDockBar ()
	Destroy.
Protected Types
enum	{ DRAG_NONE = 0, DRAG_TOP = 1, DRAG_BOTTOM = 2, DRAG_LEFT = 4, DRAG_RIGHT = 8, DRAG_TOPLEFT = (DRAG_TOP\|DRAG_LEFT), DRAG_TOPRIGHT = (DRAG_TOP\|DRAG_RIGHT), DRAG_BOTTOMLEFT = (DRAG_BOTTOM\|DRAG_LEFT), DRAG_BOTTOMRIGHT = (DRAG_BOTTOM\|DRAG_RIGHT) }
Protected Member Functions
FXbool	isAllowable (FXuint hints) const
Protected Attributes
FXComposite *	drydock
FXComposite *	wetdock
FXint	gripx
FXint	gripy
FXuchar	allowed

Detailed Description

A dock bar widget can be docked inside a dock site widget, or floated around freely.

Users can move, undock, and dock the dock bar widget by means of a handle such as a tool bar grip. When docking, the dock bar sends a SEL_DOCKED message to its target; when undocking, it sends a SEL_FLOATED message. In either case the dock site involved is passed in the void* pointer argument of the message.

Member Enumeration Documentation

anonymous enum

Enumerator:

ID_DOCK_TOP	Undock the dock bar.
ID_DOCK_BOTTOM	Dock on the top.
ID_DOCK_LEFT	Dock on the bottom.
ID_DOCK_RIGHT	Dock on the left.
ID_DOCK_FLIP	Dock on the right.
ID_TOOLBARGRIP	Flip orientation.
ID_TIMER	Tool bar grip.

anonymous enum

Enumerator:

ALLOW_TOP	Don't allow docking anywhere.
ALLOW_BOTTOM	Docking at the top only.
ALLOW_LEFT	Docking at the bottom only.
ALLOW_RIGHT	Docking at the left only.
ALLOW_HORIZONTAL	Docking at the right only.
ALLOW_VERTICAL	Docking at the top and bottom.
ALLOW_EVERYWHERE	Docking at the left and right.

Constructor & Destructor Documentation

FX::FXDockBar::FXDockBar	(	FXComposite *	p,
		FXComposite *	q,
		FXuint	opts = `LAYOUT_TOP\|LAYOUT_LEFT\|LAYOUT_FILL_X`,
		FXint	x = `0`,
		FXint	y = `0`,
		FXint	w = `0`,
		FXint	h = `0`,
		FXint	pl = `3`,
		FXint	pr = `3`,
		FXint	pt = `2`,
		FXint	pb = `2`,
		FXint	hs = `DEFAULT_SPACING`,
		FXint	vs = `DEFAULT_SPACING`
	)

Construct a floatable dock bar, with a default parent p and an alternate parent q.

To allow docking and dragging the default parent p must be of type FXDockSite, and the alternate parent q must be of type FXToolBarShell. Normally, the dock bar is docked under a window p of type FXDockSite. When floated, the toolbar can be docked under window q, which is usually an kind of FXToolBarShell window.

FX::FXDockBar::FXDockBar	(	FXComposite *	p,
		FXuint	opts,
		FXint	x = `0`,
		FXint	y = `0`,
		FXint	w = `0`,
		FXint	h = `0`,
		FXint	pl = `2`,
		FXint	pr = `3`,
		FXint	pt = `3`,
		FXint	pb = `2`,
		FXint	hs = `DEFAULT_SPACING`,
		FXint	vs = `DEFAULT_SPACING`
	)

Construct a non-floatable dock bar.

The dock bar can not be undocked.

Member Function Documentation

void FX::FXDockBar::allowedSides ( FXuchar allow ) [inline]

Change set of sides (a combination of ALLOW_TOP, ALLOW_LEFT, etc.), where docking is allowed.

The default is to allow docking on all sides.

virtual void FX::FXDockBar::dock	(	FXDockSite *	docksite,
		FXWindow *	other = `NULL`,
		FXbool	notify = `false`
	)		`[virtual]`

Dock the bar against the given side, after some other widget.

However, if after is -1, it will be docked as the innermost bar just before the work-area, while if after is 0, if will be docked as the outermost bar.

Reimplemented in FX::FXToolBar.

void FX::FXDockBar::setDryDock ( FXComposite * dry )

Set parent when docked.

If it was docked, reparent under the new docking window.

void FX::FXDockBar::setWetDock ( FXComposite * wet )

Set parent when floating.

If it was undocked, then reparent under the new floating window.

virtual void FX::FXDockBar::undock	(	FXint	rootx,
		FXint	rooty,
		FXbool	notify = `false`
	)		`[virtual]`

Undock or float the bar.

The initial position of the wet dock is a few pixels below and to the right of the original docked position.

The documentation for this class was generated from the following file:

/home/jeroen/FOX/fox/fox-1.7.32/include/FXDockBar.h
