FX::FXDial Class Reference

The Dial widget is a valuator widget which is able to provide a cyclic value range when the DIAL_CYCLIC is passed, or a simple linear value range. More...

#include <FXDial.h>

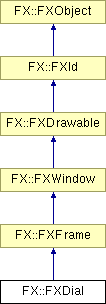

Inheritance diagram for FX::FXDial:

FX::FXFrame FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject List of all members.

Public Member Functions

 FXDial (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=DIAL_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_PAD, FXint pr=DEFAULT_PAD, FXint pt=DEFAULT_PAD, FXint pb=DEFAULT_PAD)
virtual FXint getDefaultWidth ()
virtual FXint getDefaultHeight ()
void setValue (FXint value)
FXint getValue () const
void setRange (FXint lo, FXint hi)
void getRange (FXint &lo, FXint &hi) const
void setRevolutionIncrement (FXint i)
FXint getRevolutionIncrement () const
void setNotchSpacing (FXint spacing)
FXint getNotchSpacing () const
void setNotchOffset (FXint offset)
FXint getNotchOffset () const
void setDialStyle (FXuint opts)
FXuint getDialStyle () const
void setNotchColor (FXColor clr)
FXColor getNotchColor () const
void setHelpText (const FXString &text)
const FXStringgetHelpText () const
void setTipText (const FXString &text)
const FXStringgetTipText () const
virtual void save (FXStream &store) const
virtual void load (FXStream &store)

Detailed Description

The Dial widget is a valuator widget which is able to provide a cyclic value range when the DIAL_CYCLIC is passed, or a simple linear value range.

While being turned, the dial sends a SEL_CHANGED message to its target; at the end of the interaction, a SEL_COMMAND message is sent. The message data represents the current value, of type FXint. The options DIAL_VERTICAL and DIAL_HORIZONTAL control the orientation of the dial. An optional notch can be used to indicate the zero-position of the dial; display of the notch is controlled by the DIAL_HAS_NOTCH option.

See also:


Constructor & Destructor Documentation

FX::FXDial::FXDial FXComposite p,
FXObject tgt = NULL,
FXSelector  sel = 0,
FXuint  opts = DIAL_NORMAL,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = DEFAULT_PAD,
FXint  pr = DEFAULT_PAD,
FXint  pt = DEFAULT_PAD,
FXint  pb = DEFAULT_PAD


Construct a dial widget.


Member Function Documentation

virtual FXint FX::FXDial::getDefaultWidth  )  [virtual]


Return default width.

Reimplemented from FX::FXFrame.

virtual FXint FX::FXDial::getDefaultHeight  )  [virtual]


Return default height.

Reimplemented from FX::FXFrame.

void FX::FXDial::setValue FXint  value  )


Set the dial value.

FXint FX::FXDial::getValue  )  const [inline]


Return the dial value.

void FX::FXDial::setRange FXint  lo,
FXint  hi


Change the dial's range.

void FX::FXDial::getRange FXint &  lo,
FXint &  hi
const [inline]


Obtain the current range of the dial.

void FX::FXDial::setRevolutionIncrement FXint  i  )


Set the revolution increment, which is the amount of change in the position for revolution of the dial; the dial may go through multiple revolutions to go through its whole range.

FXint FX::FXDial::getRevolutionIncrement  )  const [inline]


Get the current value of the revolution increment.

void FX::FXDial::setNotchSpacing FXint  spacing  )


Change the spacing for the small notches; this should be set in tenths of degrees in the range [1,3600], and the value should be a divisor of 3600, so as to make the notches come out evenly.

FXint FX::FXDial::getNotchSpacing  )  const [inline]


Get the current notch spacing.

void FX::FXDial::setNotchOffset FXint  offset  )


Change the notch offset, which is the position of the center notch; the value should be tenths of degrees in the range [-3600,3600].

FXint FX::FXDial::getNotchOffset  )  const [inline]


Get the current center notch offset.

void FX::FXDial::setDialStyle FXuint  opts  )


Changes the dial style.

FXuint FX::FXDial::getDialStyle  )  const


Get the current dial style.

void FX::FXDial::setNotchColor FXColor  clr  )


Change the center notch color.

FXColor FX::FXDial::getNotchColor  )  const [inline]


Get the current center notch color.

void FX::FXDial::setHelpText const FXString text  )


Set the help text to be displayed on the status line.

const FXString& FX::FXDial::getHelpText  )  const [inline]


Get the current help text.

void FX::FXDial::setTipText const FXString text  )


Set the tip text to be displayed in the tooltip.

const FXString& FX::FXDial::getTipText  )  const [inline]


Get the current tooltip text value.

virtual void FX::FXDial::save FXStream store  )  const [virtual]


Save to stream.

Reimplemented from FX::FXFrame.

virtual void FX::FXDial::load FXStream store  )  [virtual]


Load from stream.

Reimplemented from FX::FXFrame.
